Enfield Himalayan: desert ready

Himalayan Index Page
Supported byhimsupp

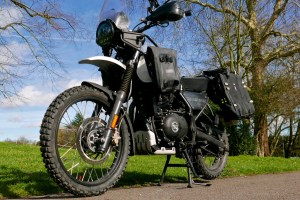

s1nzmangrohimheadlyWhile I was dodging the winter under the shady mangroves of the Coromandel peninsula (right), Simon-with-a-workshop quietly worked on my Himalayan, like a gnome chipping away in a pink rock-salt mine. The long list included:

Bolt-ons

Move the Oxford heated grips control module to an accessible position and rewire it to the ignition, not the battery, as the original owner had done.

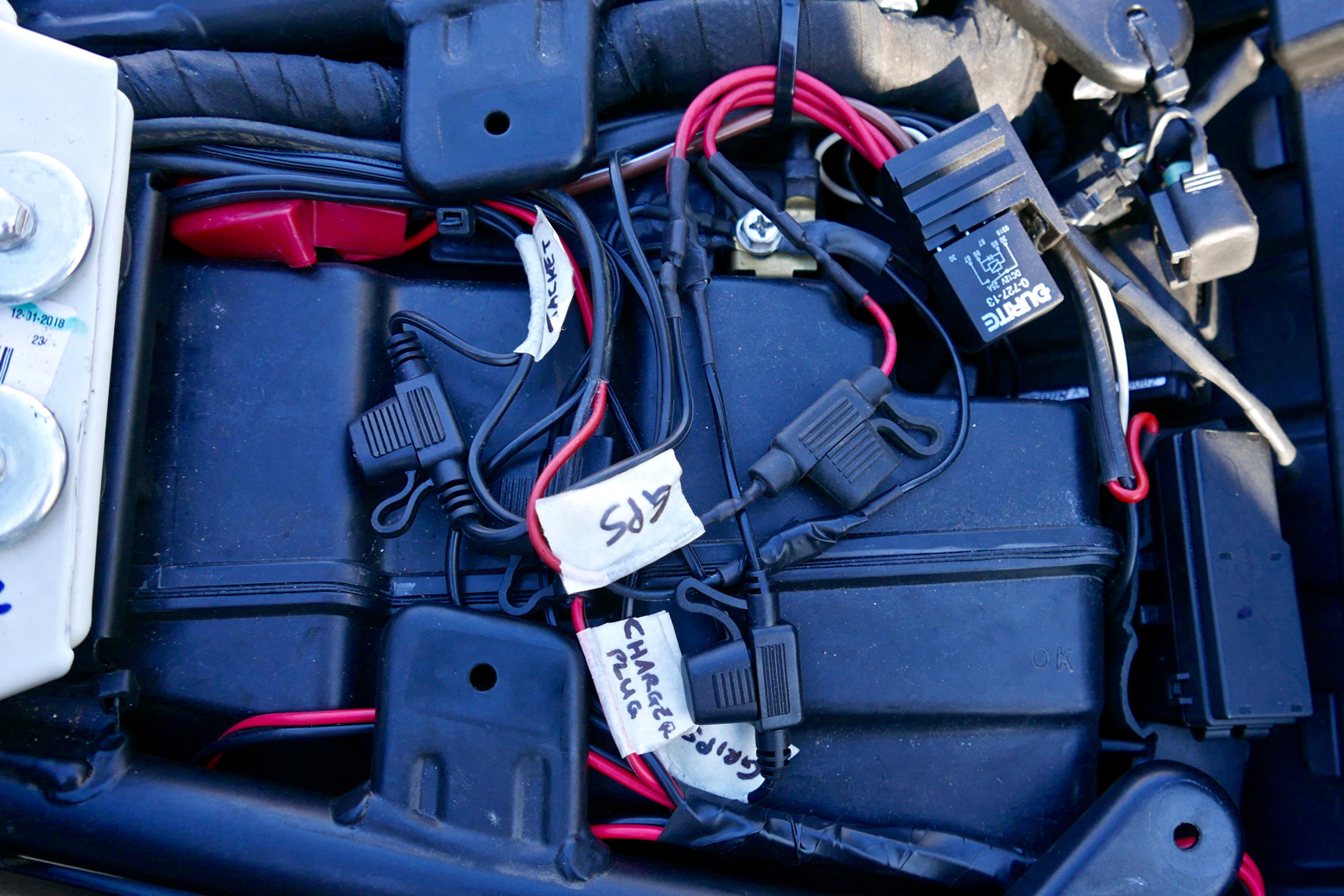

Fitting ancillary leads off the battery for my heated jacket and Cycle Pump/battery optimiser.himleads

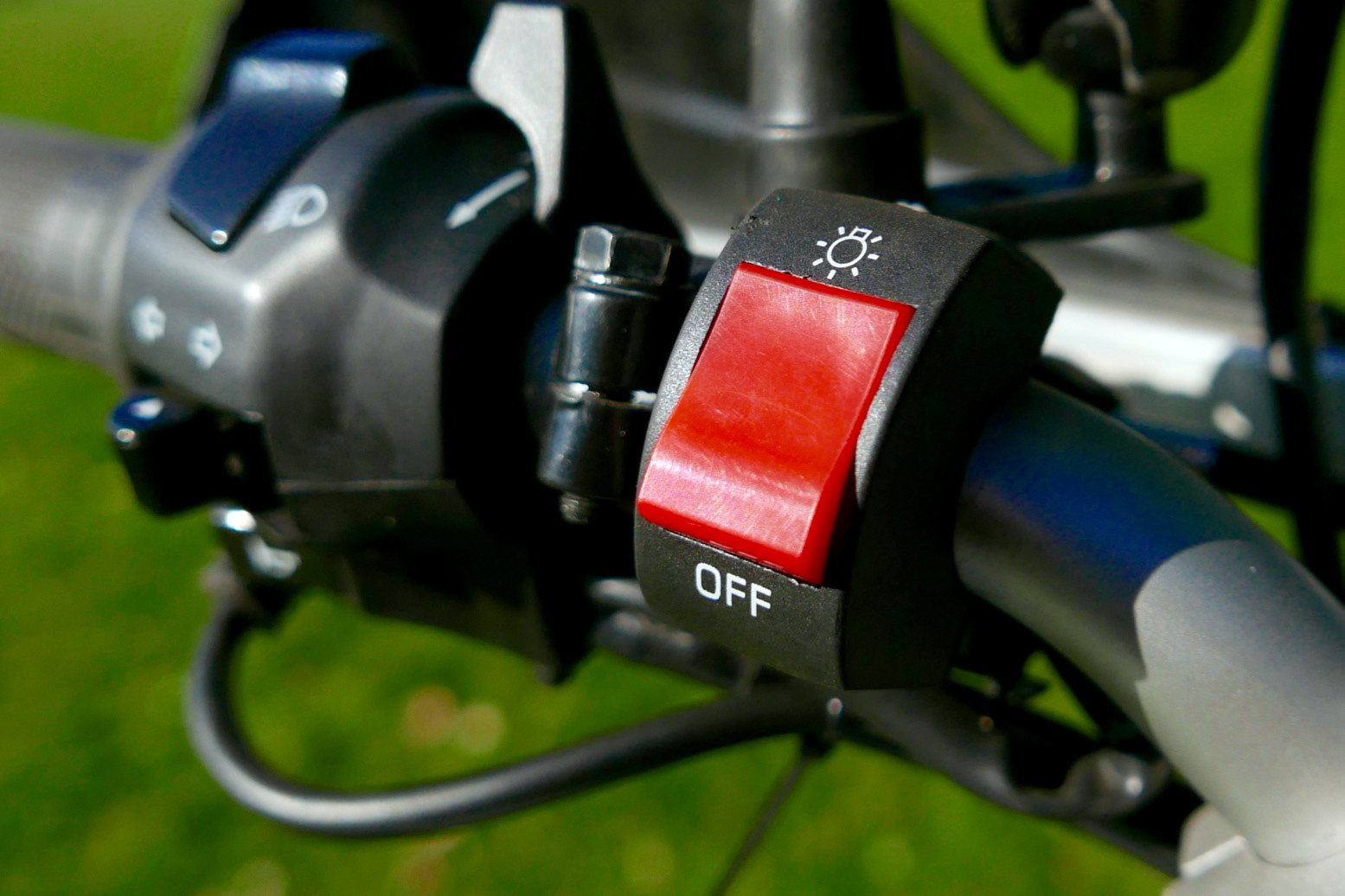

Fitting a switch to kill all lights. Handy for battery saving as well as leaving the highway unnoticed for stealthy wild camping.

himlightout

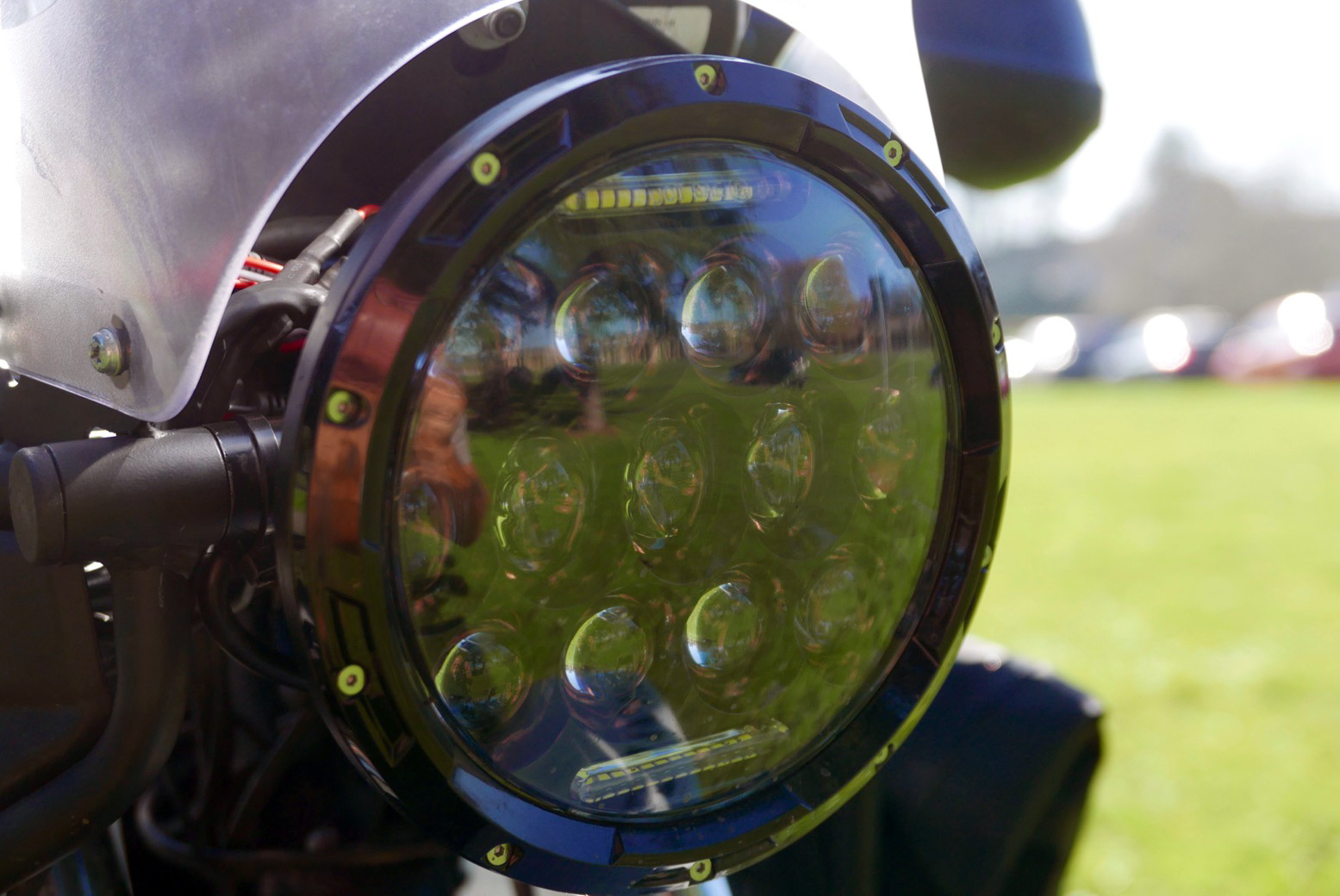

Refitting the cheap LED headlamp which came with the bike. It’s the same one I put on my XScrambleR. Never rode that bike in the full dark but although it saves watts (or is it amps?), I suspect the LED lamp looks better than it shines.

himLED

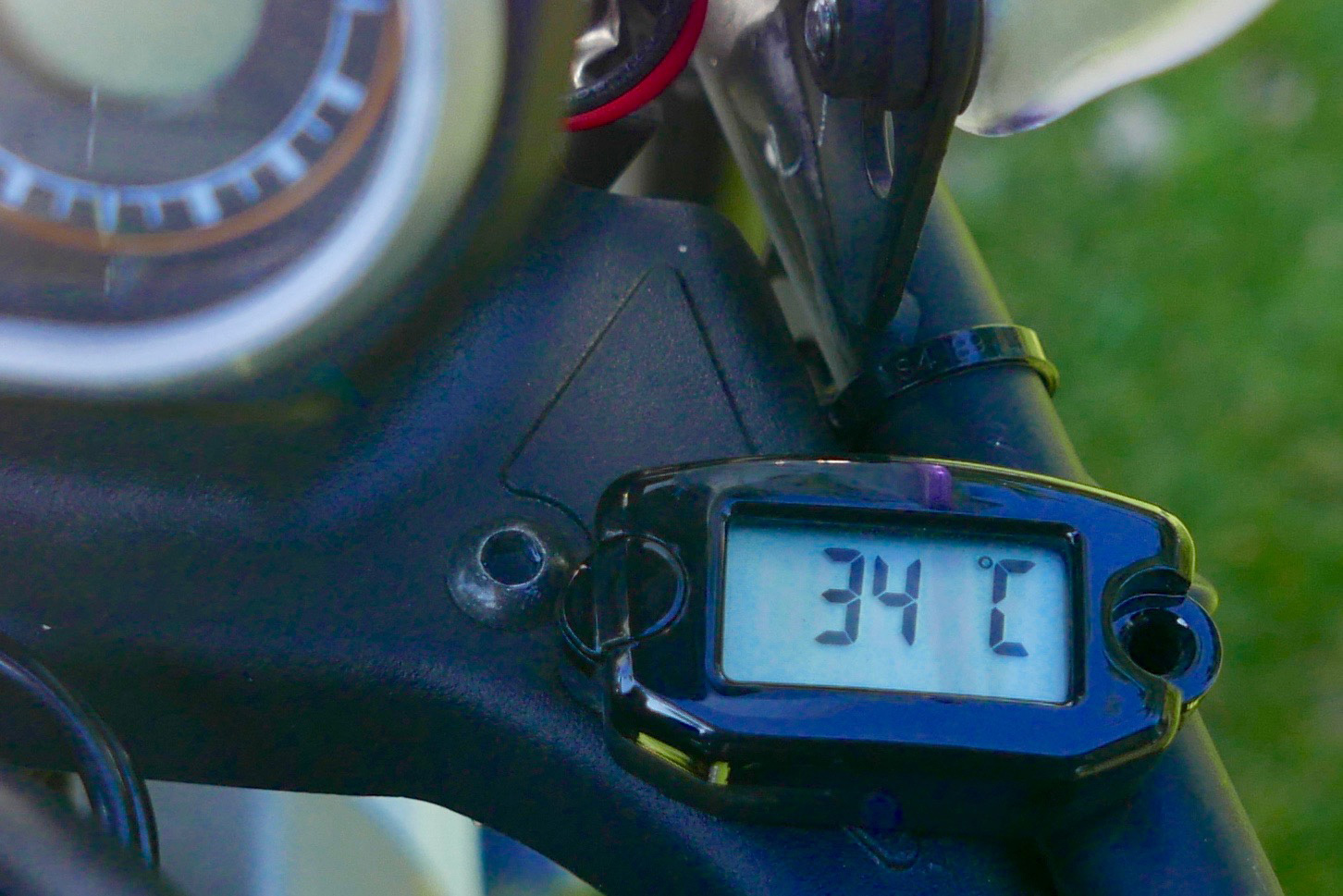

To monitor engine temperature a Trail Tech engine temperature sensor is more useful, accurate and quicker responding than relying on the stock ambient air temp sensor. At a cold start it will show ambient anyway, same as the stock in the dash, but once running, reading off the spark plug, the TTech soon shoots up. Even with the oil cooler and the ‘under piston oil sprays’ we read about, the low-tuned, air-cooled motor’s reading reaches a staggering 240°C at 65mph on the motorway, dropping to around 175°C in town. The spark plug is of course just about at the hottest point of an engine so basically it’s quite normal. ‘They all do that – sir‘.
Under the seat the Himalayan’s ambient air temperature sensor got relocated anyway to a position less affected by the motor’s downwind heat flow so it gives a truer ambient reading once on the move. It’s a common mod.
him-temp

Garmin Montana cradle fitted to left mirror stalk with RAM mounts and hardwired to the ignition.

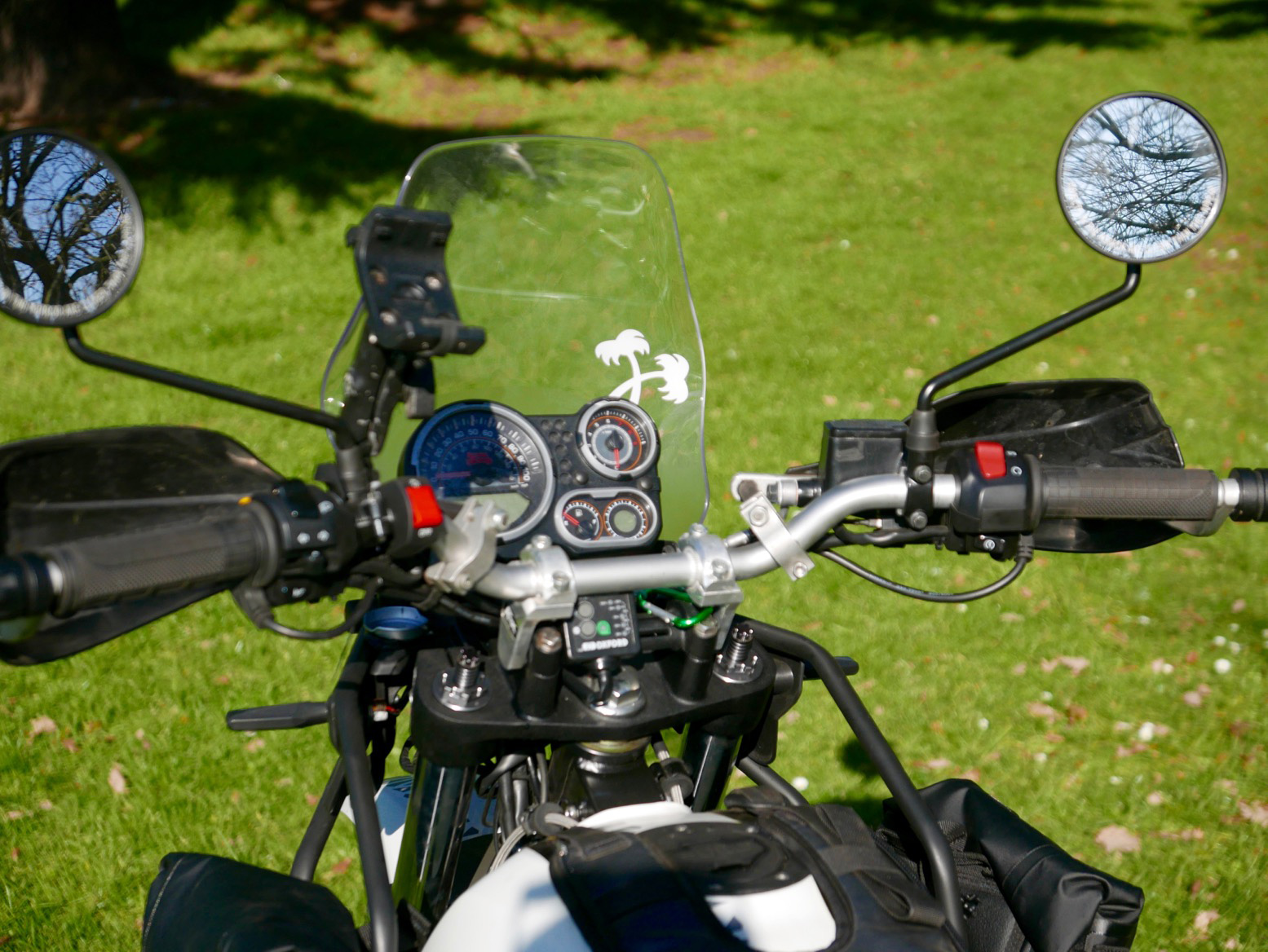

I thought they’d not fit for want of cable slack, but I was wrong and the adjustable Rox Risers have raised the stock bars a healthy 50mm. It required releasing a clip off the braided ABS brake line under the tank somewhere, and the barely needed cold start cable was also on the limit. With the raised seat it’s now easy to stand up and to not stoop once I’m up there. Halleluia.

himkokbarkbt06

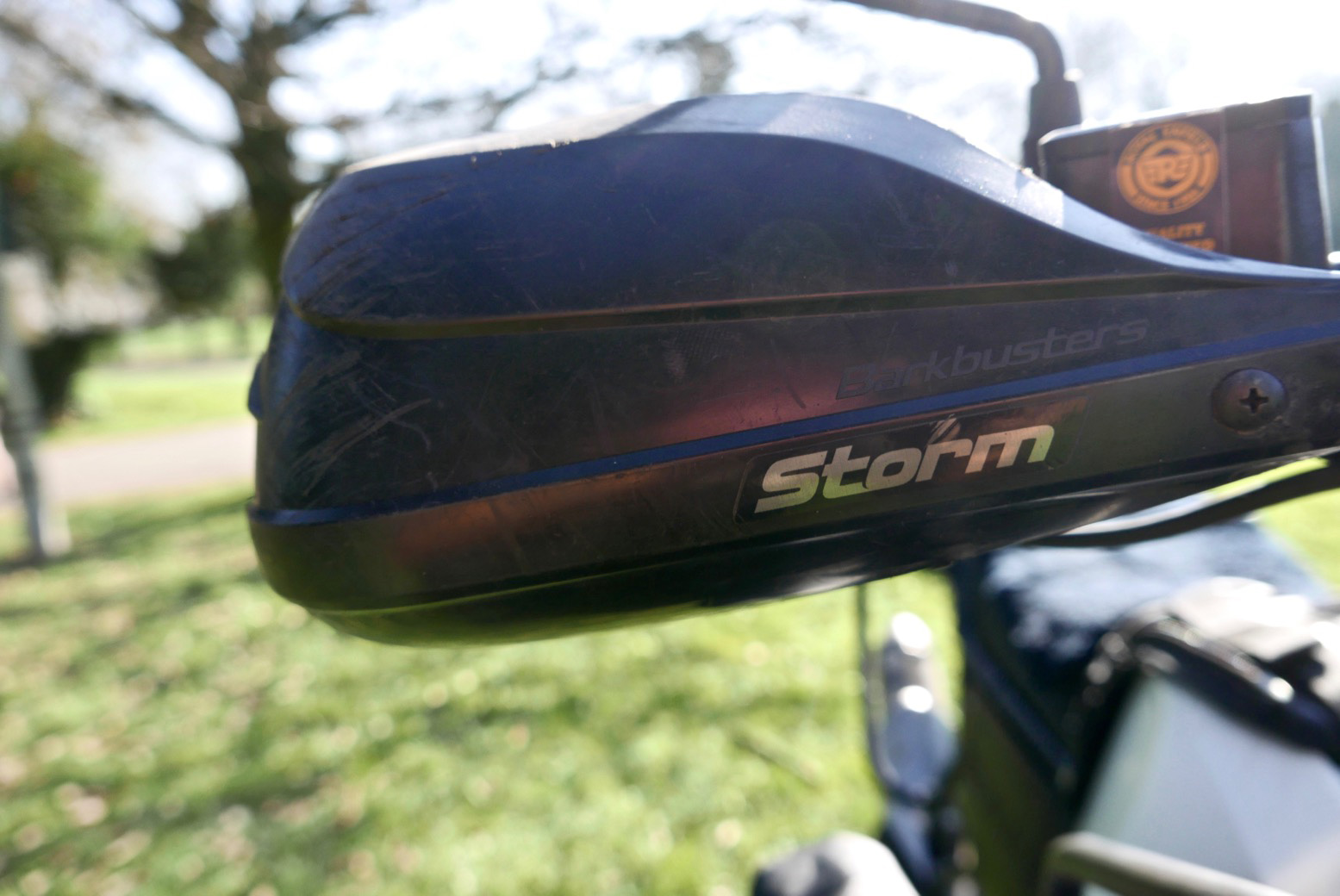

My ancient Barkbuster Storms are now on their 7th outing since fitting to my XT660Z back in 2008. I should win some sort of recyclerecycling award. Simon had to make some simple mounts as for some reason, the curvy BTC 06 adaptors (right) which were recommended didn’t fit. Could be that a decade on, newer Barks have changed shape.
The Barks require the slightly adjustable  stock screen to be set fully forward, but riding back I can’t say the turbulence was any better or worse than in the original position. I think that at the speeds the REH can achieve, it’s all a bit academic. And as it is I’m sat on a motorbike out in the open air. There will be turbulence.

himbarkerhimbarkmount

Like so many bikes I’ve owned lately, I assumed the stock shock would be a budget keep-the-fender-off-the-wheel job, so I pre-emptively ordered the Thai-made YSS which took a himcoilfew weeks. Some reports claim the stocker is too harsh, others say too soft, others just right. On the road it didn’t feel too bad – perhaps the usual mix of over-sprung and under-damped. It weighs over 4.8kg and half appears to be coil-bound, but in fact there’s a couple of mm gap in the coils (left) which adds some progressiveness.
It would have been good to evaluate it properly, but the shiny red YSS is sat there like a cream cake on  cushion. Getting it fitted, I asked my LBS to check the linkage grease. Who knows if they did. I may also rivet on a flap to stop it getting plastered with crud spun off the back wheel.
The YSS is about a third lighter at 3.3kg, costs £290, is length adjustable by 10mm, has 35-click rebound damping and will work with an HPA which probably costs half as much as the shock. Out of the box rebound came at 20/35 clicks and with 12 threads exposed below the spring preload collar. Looks like a good place to start. On the short ride back from the LBS I did detect a little more compliance with small irregularities. Otherwise it felt the same. With most suspension upgrades, I’ve found you can’t tell much difference until road surfaces deteriorate or the speeds increase.

YSS fitting advice: The preload collar at the top of the YSS is now quite hard to access – removing the airbox lid on the LHS may help, as will a shorter, right-sized hex key, as opposed to the rod supplied. There is a tiny hex screw on the collar which locks it to the threads (hex key supplied). Either risk leaving it loose (collar may unwind), or make sure when fitting the shock that it’s in a position where you can get to and loosen it from the LHS – about ‘7 or 8 o’clock’ if 12 = forward. You will then probably need to wind or unwind the collar a full 360° to get the screw back in a lockable position.

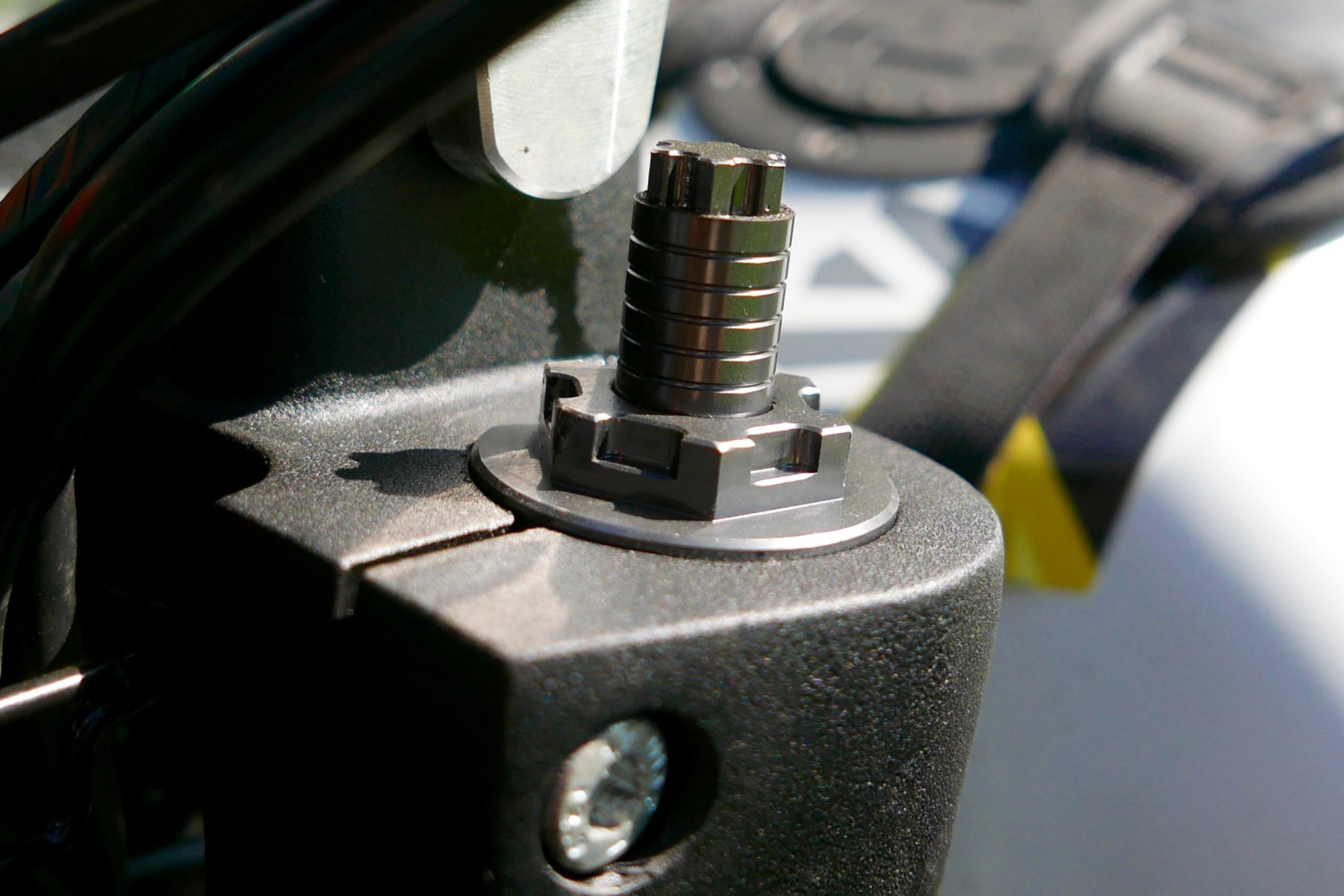

A tenner’s worth of Chinese fork preloaders were also fitted on the front but are currently set at zero. The stock spacer inside the top of the fork needed to be shortened.

him-prelod

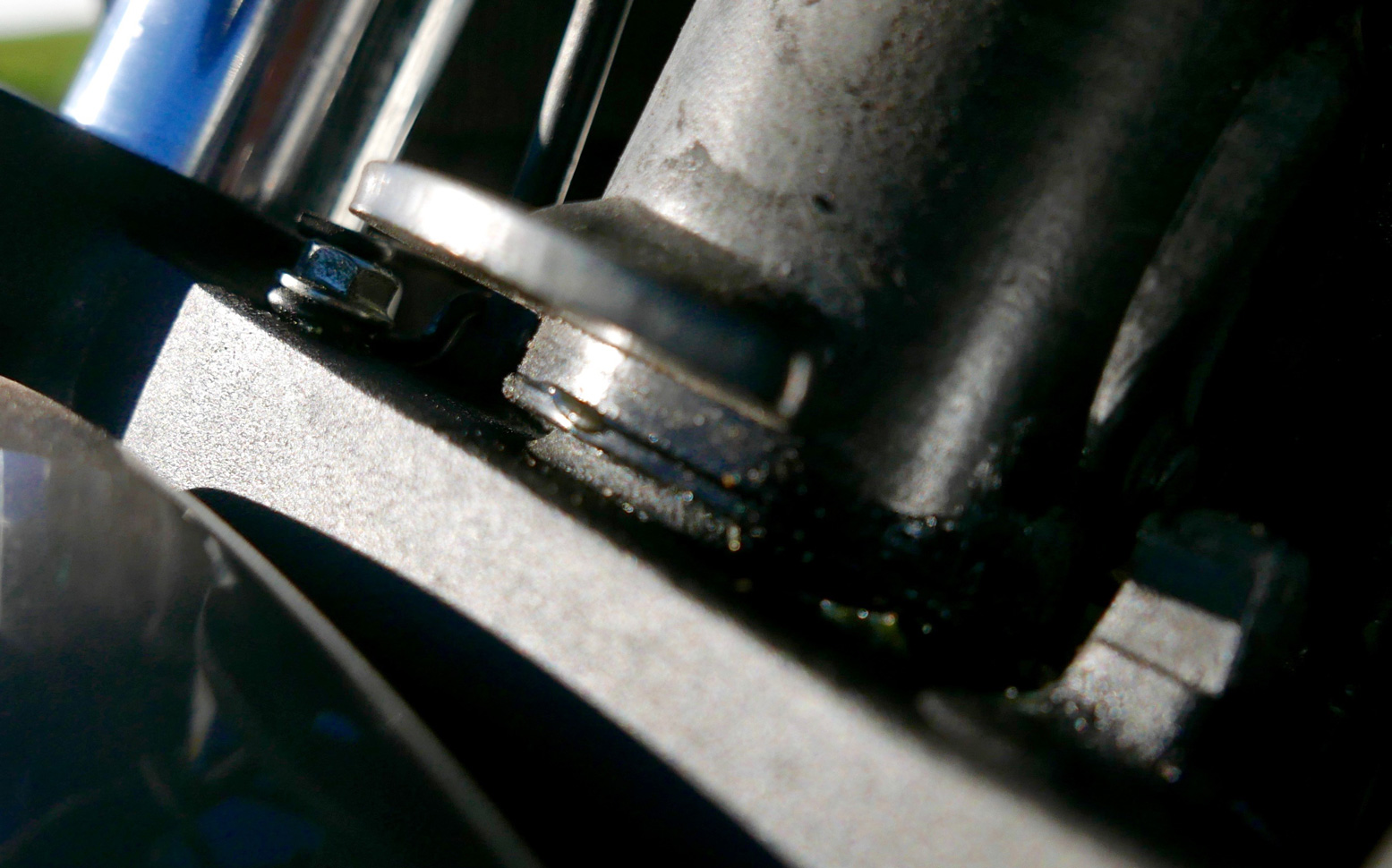

The steering head bearings got regreased. Along with swing-arm linkages, it’s a common precautionary requirement, and not just on inexpensive Indian bikes. My BMW XCountry’s head races were shot at just 6k.

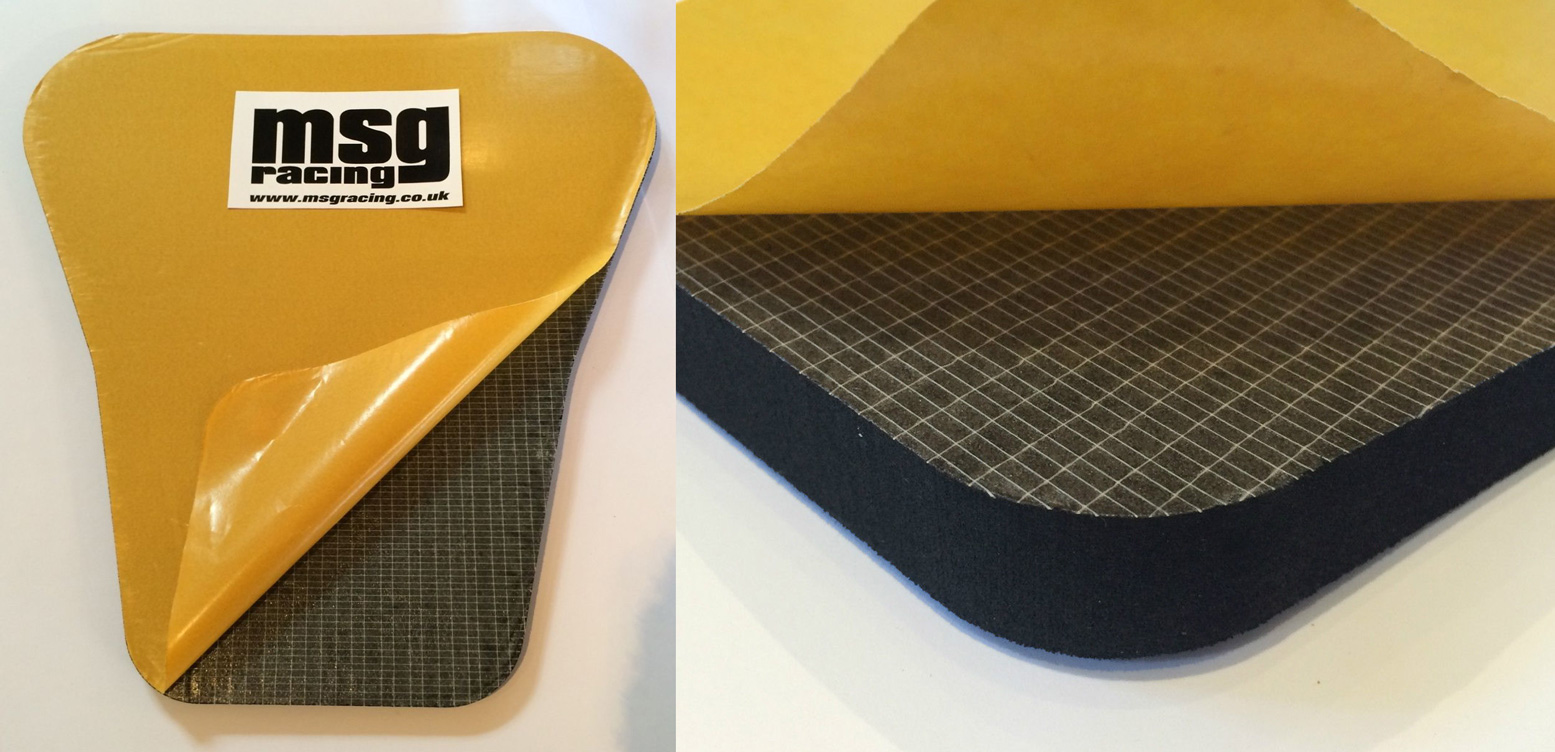

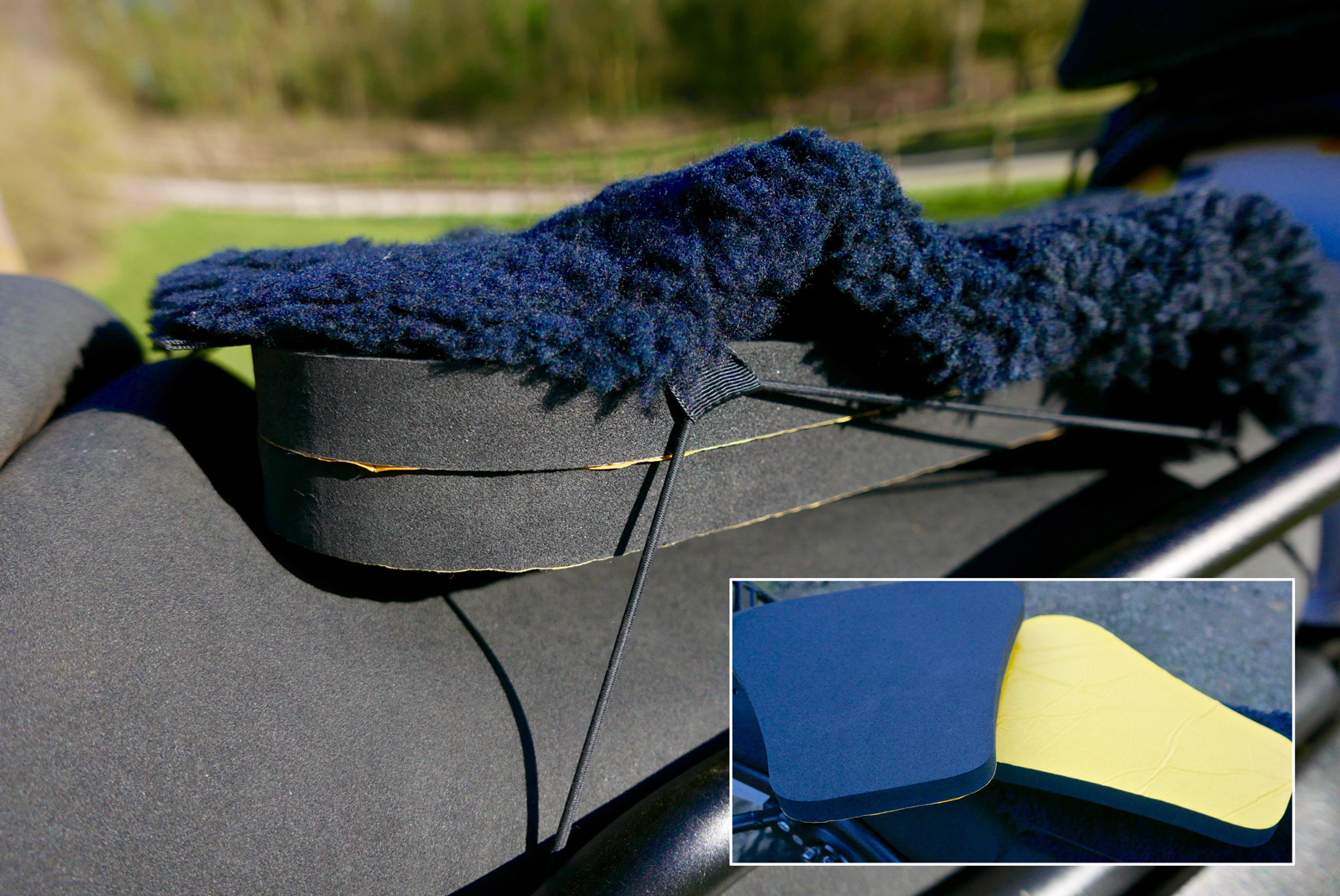

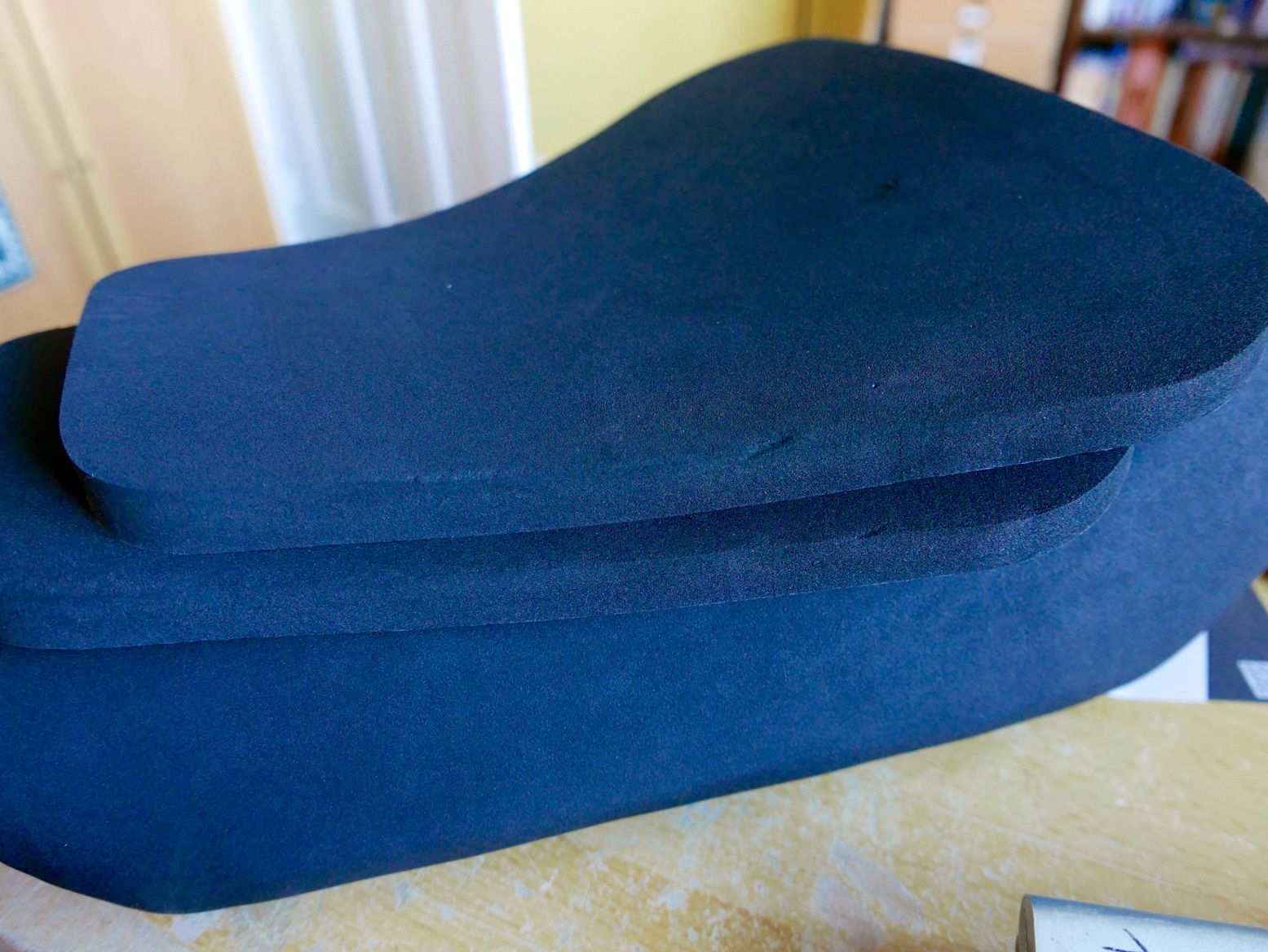

him-msgseatpadMy initial seat foam bodge proved to be poor, mostly because the foam I used had the springiness of Philadelphia cheese. A fellow Himaliste recommended some pre-cut stick-on foam seat pads on ebay (left; £15 each). At 20mm I bought two and rode home with them shoved under the Aero lambswool pad.

With the yellow backing still on, it all slithered around a bit and after only 120 miles the butt was sore, but I can definitely see the potential in raising the seat height. And I do wonder if the old lambswool pad makes things worse.

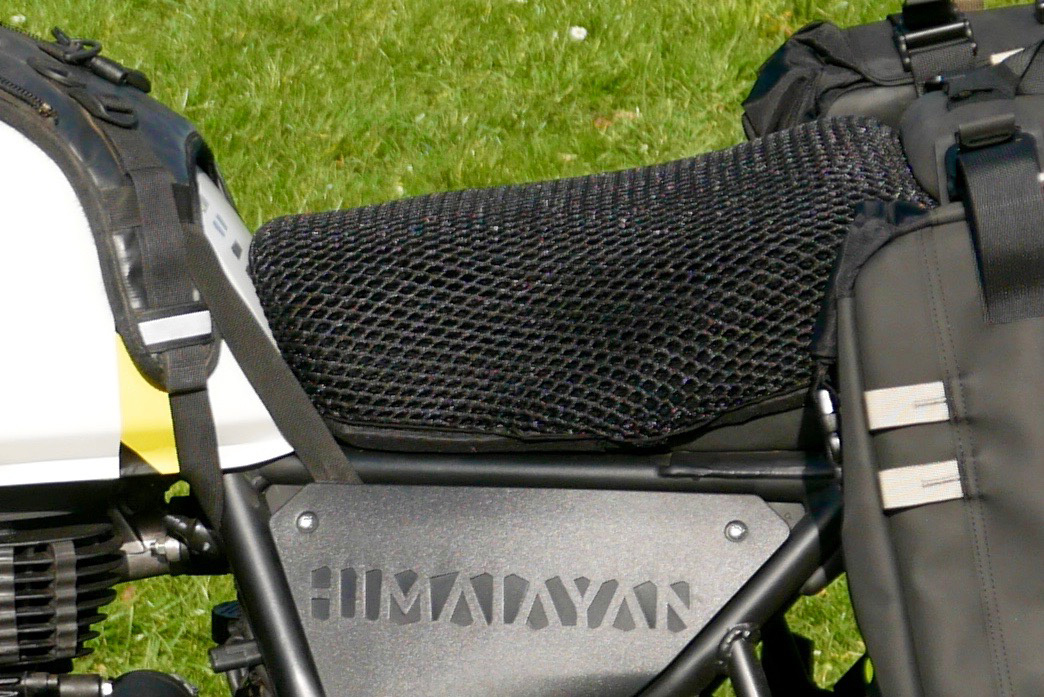

Cool Covers sent me one of their durable aerated mesh seat covers to try. Like wool, the idea is that air circulation reduces heat and improves comfort, but with bike saddles, one man’s fur-lined throne is another man’s agony. Luckily, the Cool Cover just stretched over the two racing pads now glued to each other and the stock seat. The back edge of the top pad was crudely trimmed to level it off. In the picture below the seat looks like it’s sloping forward – not good – but it’s actually the taut cover over an air gap. The foam below is more level than it looks.


Let’s hope it makes a difference but bike saddles are usually more miss than hit. Seat foam apart, the combination of seating position, bars, footrests and the presence of a screen all have an influence, but it’s also down to tank range – in other words how long you sit riding uninterrupted. My CRF250L should have been the usual agony, but because I could only do 120 miles before reaching for the fuel can, the 5 minutes it took to do that rejuvenated the cheeks. One of the worst saddles ever was the BMW F650GS, probably because it easily did 200 miles between fill ups. One of the best was my GS500R Overlander. I never worked out why.

himslabs
himcoolcov

Wheels and Tubeless Tyres

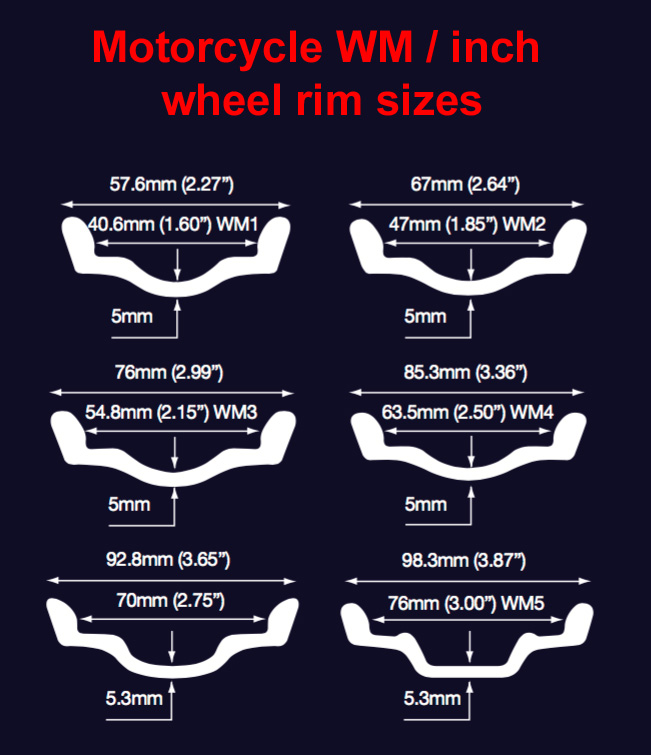

wmwheelrimsNote: being a maddeningly illogical Imperial British standard, the ‘WM’ wheel rim width designation you commonly see (in the UK at least) doesn’t correlate with actual rim width in inches. But it is close – see table right. They say ‘MT’ is a modern, fully logical (but little seen) equivalent, where the MTxx number refers to the actual rim width in actual inches.
As confusingly, rim width in inches does not correlate with notional tyre width where,
for example, a 120 section width (120mm; 4.7”) is converted to inches. But it is close-ish.
Stock REH rims are WM1 (MT1.85) on the front and WM3 (MT2.15 – need to check) on the back with a 120/90 17 tyre.

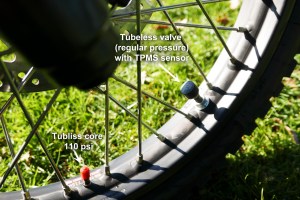

himtublie

To enable easy puncture repairs I wanted reliable tubeless wheels which meant sealing the spoked rims. Along the way I was happy to ditch the steel rims in the hope of saving unsprung weight which I keep going on about. A mate had given me some ageing 18 and 21 Tubliss. The back was a bit too old to risk; a BNIB front got fitted and Slimed with the new Michelin (left).
On the back, for the sake of simplicity I wanted an Excel 18-er with a new Tubliss (Tubliss don’t do 17 size). Then I was told max width for an 18-er Tubliss is 2.15” rim, like the stock, I think. The Anakee Wilds were recommended for a 2.5-inch rim. We’re talking a notional discrepancy of a third-of-an-inch here, but let’s try to do it by the book for once. Shame as an 18-er would have saved a couple of kilos in tyre and rim and greatly opened out the range of off-road tyres. But another problem is tubeless tyres (which do differ significantly from tube type) are rare in 18-inch size. Seventeen TL tyres are much more common.CWCAirtight

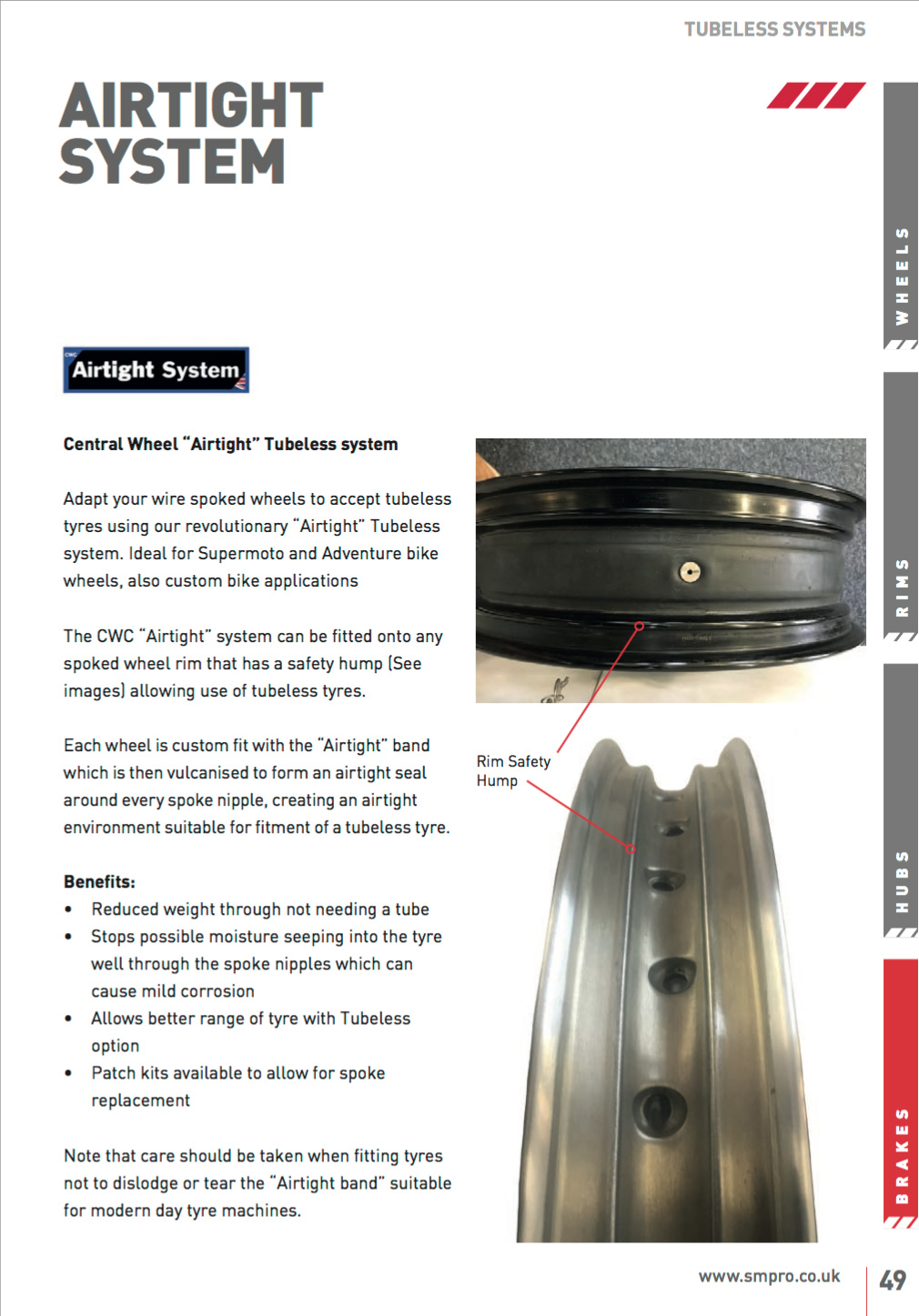

It wasn’t on their website but CWC’s brochure mentions an Airtight™ vulcanised spoke-sealing band (left). It’s similar to the Italian BARTubeless polymer sealing I had on the Rally Raid CB500X of a couple of years back (and which CWC also offer).
I’m always keen to try something new for my Ongoing Tubeless Saga, but not so fast, chum! CWC can only Airtight a 3-inch (WM5) or wider rim. Next problem: there were no 18-inch Excel rims in that width, so it was back to a 17-inch rim in WM5 to fit an Anakee Wild. Confused? So was I but we got there in the end.MichelinAnakeeWild
Tyres were always planned to be Michelin Anakee Wilds, one of the few do-it-all travel bike tyres I’ve not yet tried. On hearing about my plans Michelin kindly supplied them for free, along with a couple of back-up tubes which I hope I won’t need. Rear is a 130/80-17 M/C 65R TL. The front gets the larger 90/90-21 M/C 54R TL to balance the lift on the back. And it all comes with lashings of Slime.
Simon did some weighing before Sliming (add about 250g per wheel):

Stock front wheel with Pirelli MT60 90/90 + tube 13kg
Front wheel with 90/90 Anakee Wild + Tubliss 14kg
(Stock steel front rim 3.77kgsource)
Stock rear wheel with MT60 120/90 17 + tube 15kg
Airtight  Excel + Anakee Wild 130/80 17 TL 14kg
Stock steel rear WM3 rim 2.15 x 17 3.84kg (source)
Excel WM5 17 rim + Airtight band 3.5kg (acc. to CWC)
Michelin Anakee Wild 130/80 17  7.5kg
Pirelli MT60 120/90 17 + tube 6kg

tltwitSo, a kilo gained on the front due to Tubliss and heavier Wild tyre; a kilo lost on the back despite the wider Excel being barely lighter than the steel stocker. I wonder if there’s an error somewhere, considering the new Michelin is 1.5kg heavier than the stock MT60 and tube.
The whole ‘alloy is light’ thing can be a bit xsrbarof a myth until you get to the exotic stuff. Look at MTB frames or an old, two-ton Range Rover or handlebars (right). But, although it’s been decades since I’ve had wheel problems, I’m pretty sure the CWC-built Excel will be stronger than the steel stocker.
At 7.5kg, the TL Anakee on the back is hefty. I rationalise that the added mass is down to the tougher tubeless carcass. If it’s anything like the punctured Anakee or Tourance I rode on last November, it’ll be stiff enough to cautiously ride airless while staying on the rim until I reach a village tyre menders (right). Here are some more dims regarding 18 or 17-inch Anakee Wild tyres:

Anakee Wild 120/80-18 M/C 62S TT
Max sectional width 131mm, max diameter 663mm, weight 5kg,
Recommended rim width 2.75”
Anakee Wild 130/80-17 M/C 65R TL
Max sectional width 142mm, max diameter 654mm, weight 7.5kg (verified by SV), Recommended rim width 3.0”

Both will easily fit the width of the Himalayan’s swing arm, but at the front (back) of the swing arm, clearance gets down to less than an inch with the taller 18. A bit of chain wear and you’re good to go. On the front the mudguard now looks fairly close to the new Wild, so for mud clearance I’ll lift it a bit as mentioned below.
Riding back 120 miles, the fresh Anakees rode a lot more securely than some also-new K60s I’ve ridden with other bikes. No weirdness in bends and no vibration or noise (a common complaint) that I could tell.

him-excel

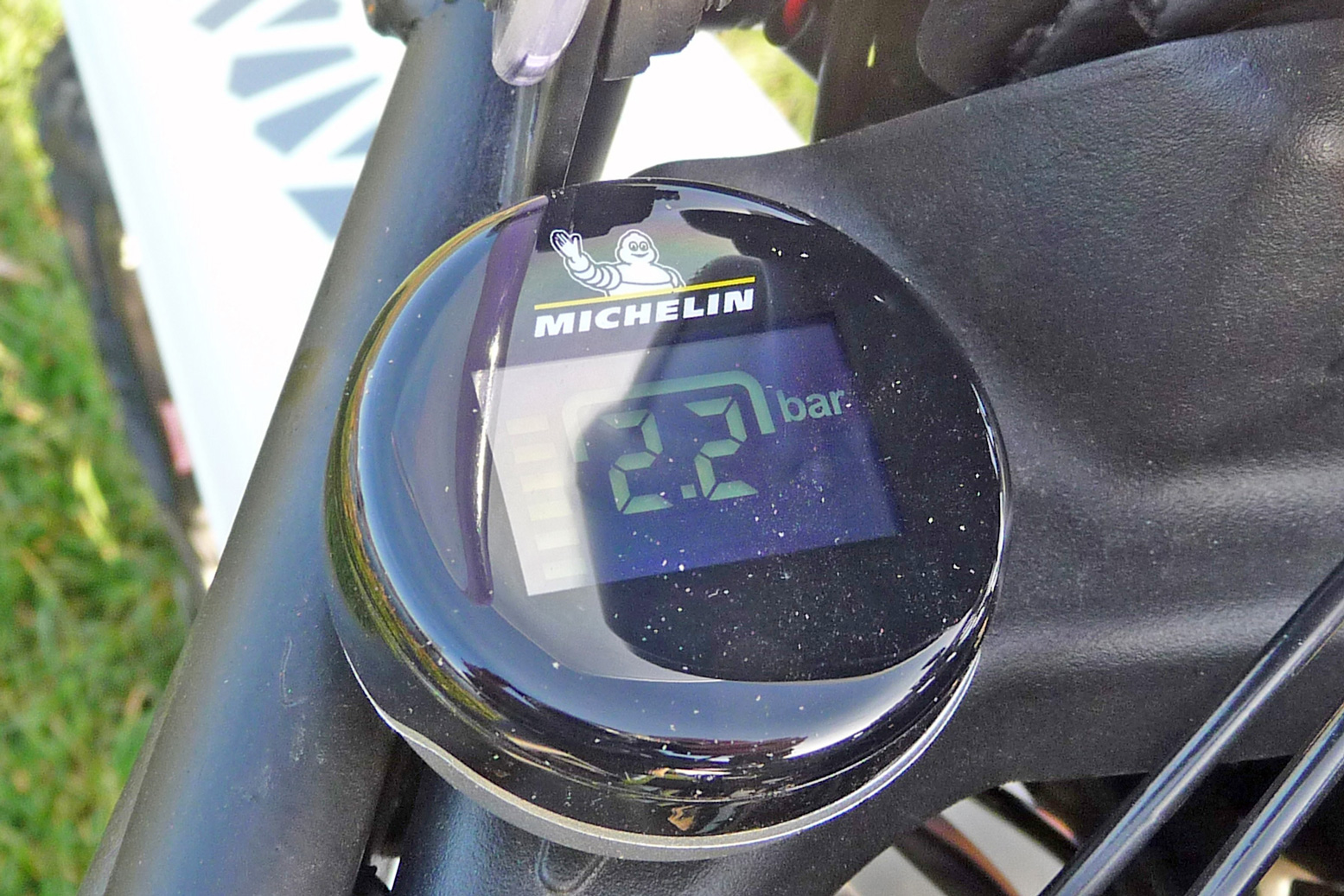

Michelin have just brought out a new TPMS and sent me one to try out. It will be particularly welcome for keeping tabs on my untried tubeless set up. The unit is USB rechargeable and sits magnetically in a stuck-on dish. So it’s easy to remove or nick, and might fall out on rough ground without an extra method of adhesion.
The read-out (psi or bar) flips every few seconds between front (as shown below) and rear. It’s interesting to note how pressure climbs by up to 20% as the tyre warms up.

himtpms

Fabrications and load carrying

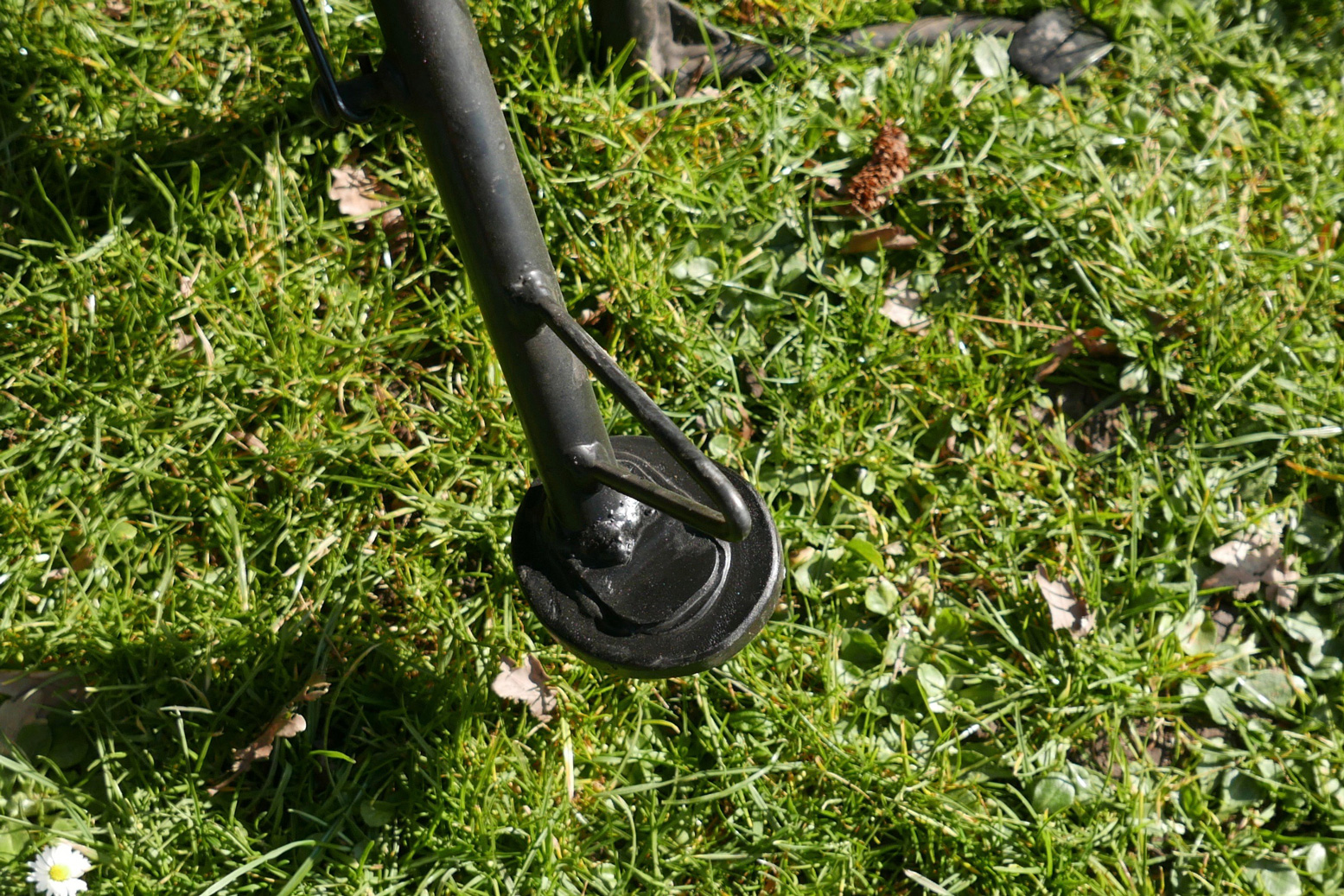

Apart from some custom Bark mounts, all the Him needed made was a sand foot plate welded on the end of the sidestand.

him-stand

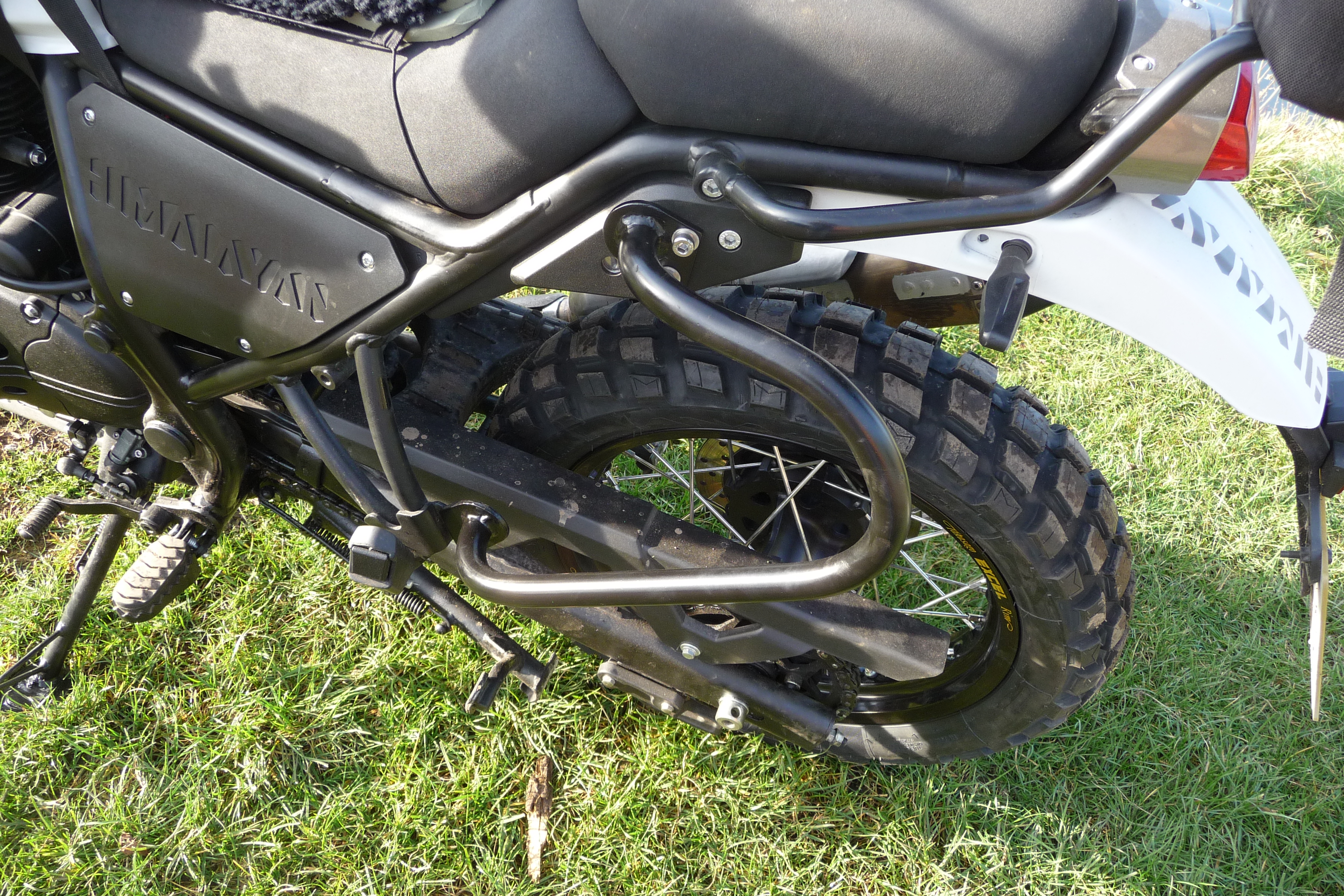

himreackAnd Simon managed to hand bend and bolt on a pair of very nice unbraced C-racks (as I’ve decided to call them). I’d originally bought the RE pannier rack from India for only £77 (right), but while cheap, the thing weighed over 5kg. You don’t need all that metal unless you’re running alloy cabinets.
Inset in the circle below, Simon pointed out a weak spot where the lower C-rack bolts to the pillion mount which is welded rather bolted to the subframe. But the unbraced rack has some give, plus the soft bags will also absorb impacts, so hopefully it will take quite a crash to break the mount. It actually wouldn’t be hard to brace from the upper curve of the C-rack to a point on the stock tail rack, just above the indicator.

him-raker

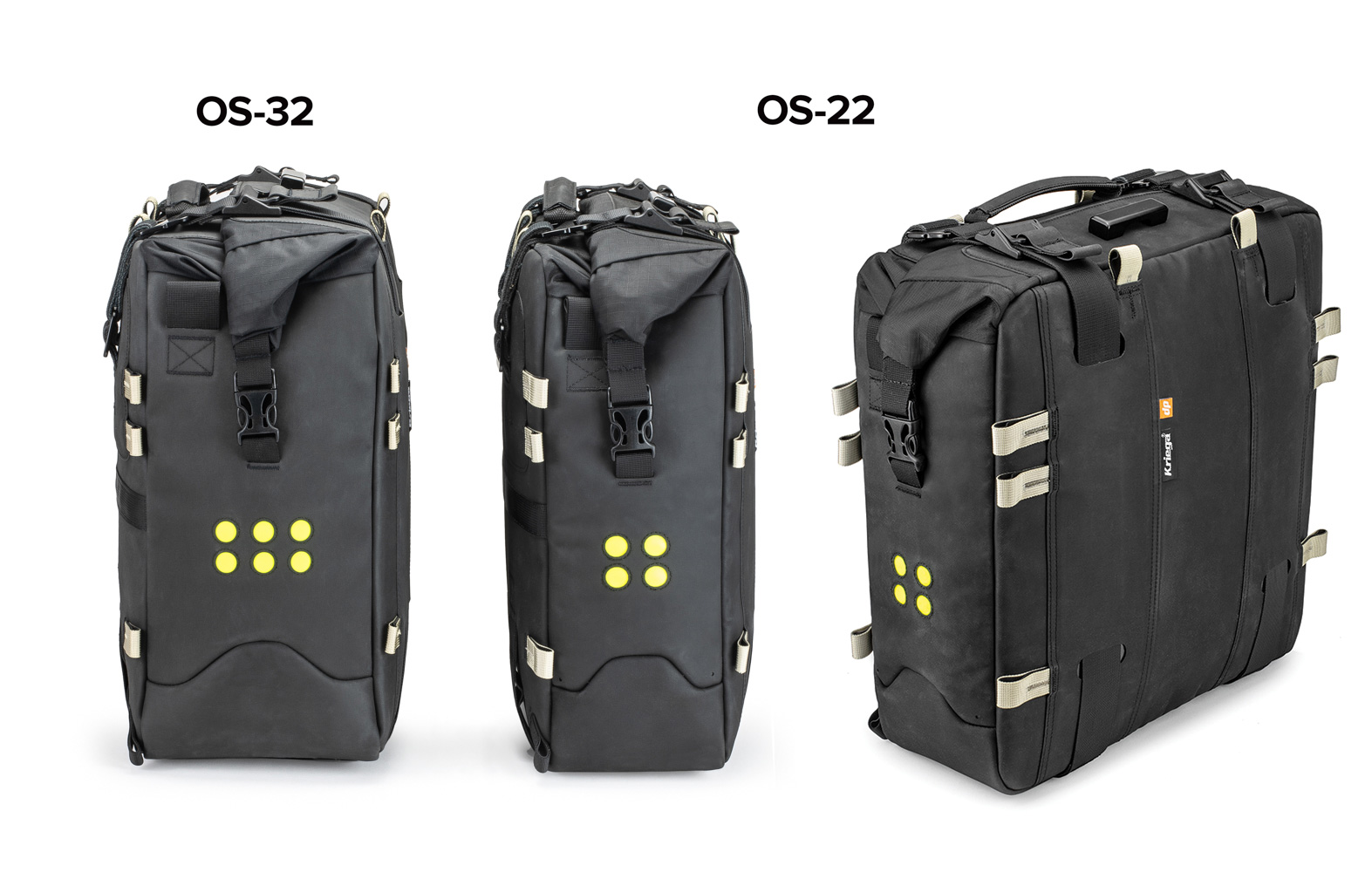

I forget that I’m an unsung Kriega Ambassador; they’ve just sent me a set of their new OS22 throwovers (below) to try out. I was a big fan of the ROVAFLEXOS32 on my WR250R a couple of years back. The OS22s feel very rugged and weight in at 2.5kg each. This time, to save weight I’ll fit them as throwovers without the platform, and use the tabs on the back to secure it to the C-rack with brilliant q/d RovaFlex cable ties (right).

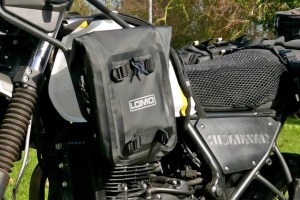

himlomoThey’re the same size but 40mm slimmer than the 32s which looks quite a lot, but the slack will be taken up on the front by the 6-litre Lomo Crash Bags (left). kriega10drypackHopefully I can get away without my 30-L Ortlieb Travel Zip which can make getting on an off a chore. I have a 10L Kriega Drypack (right) knocking about if I need more capacity.krigos22No six-megaton bashplate you say? On the tracks I ride these days they’re more useful at keeping flying gravel from damaging the engine paint. When it gets that gnarly, I’m down to walking pace, ready to deploy outriggers. The new tyres and firmer shock have raised the clearance a bit so the tinny, stock bashplate (below) will do fine for the moment.


Lifting the front mudguard tenmudlis a good idea now that the fatter 90/90 Anakee Wild is closer to the plastic. Right, one time on the Tenere in Morocco I rode onto recently rained on clay which jammed the front wheel solid. A right faff to clear with Moroccan farm workers milling around saying ‘Oi, you’re front wheel’s jammed, mate!’.

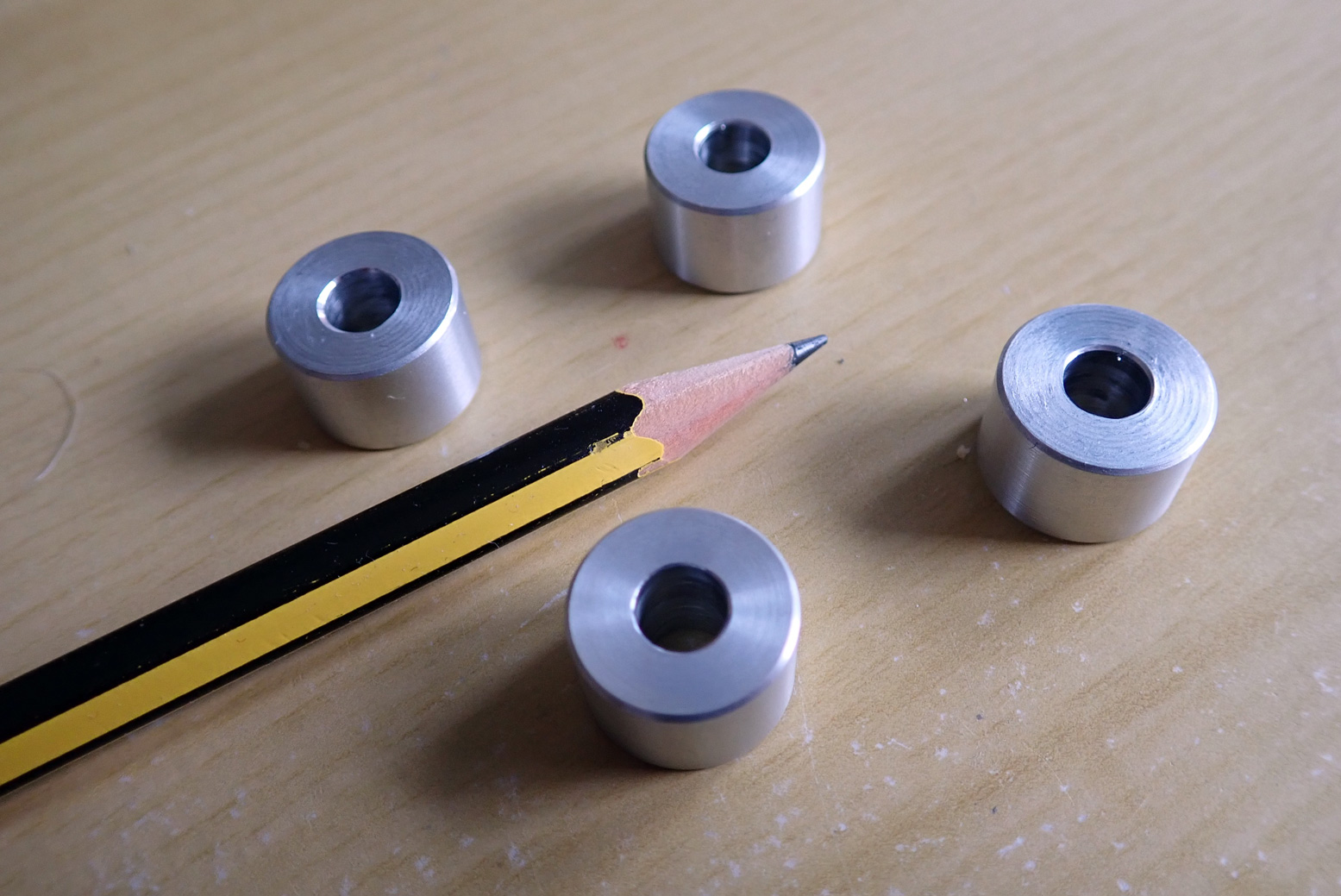

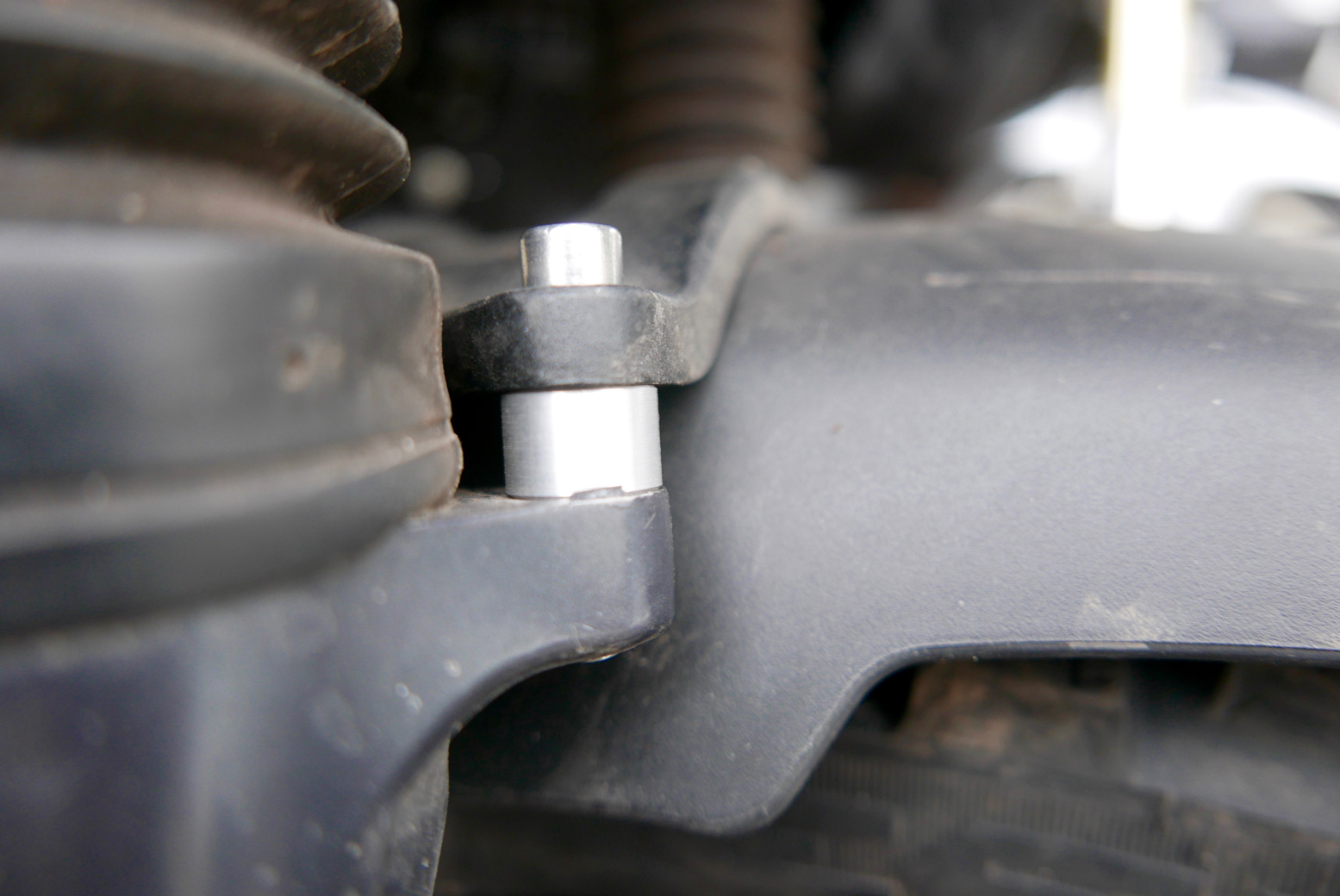

himudraiseOn the Him it’s easily done with slightly longer fork brace bolts (below) and some M6 spacers raising around 10mm, before the mudguard hits the downtube on full compression. It’s worth remembering these spacers (search ebay: ’15mm ø aluminum bushes M6 hole’; right) want to keep a broad contact between the brace and fork mounts as there’s some leverage stress here.

himlift


So there it is. Just about all done in one fell swoop, as they say in Simon’s neighbourhood. Riding back to London, initially the Him felt a bit odd as modified bikes always do. The jacked up shock and new Michelins have given the bike an altered stance, but despite the sliding seat pads I soon settled back in to it.
It’s not fast, but somehow that’s not frustrating and I’ve yet to put my finger on exactly why. Am I still in the honeymoon period of enjoying the novelty and kidding myself it’s better than it is, as so many owners claim with their bikes? Or with the Himalayan, have Royal Enfield stumbled on some magical combination of looks, gearing, power delivery and value for money which, for the moment ay least, still makes this bike such an enjoyable ride?
It’s getting trucked to southern Spain shortly – a liaison stage to Morocco which I’ve done enough times already. We’ll see how I feel once the shine has worn off after a month on the trails and backroads of southern Morocco.

Himalayan Index Page

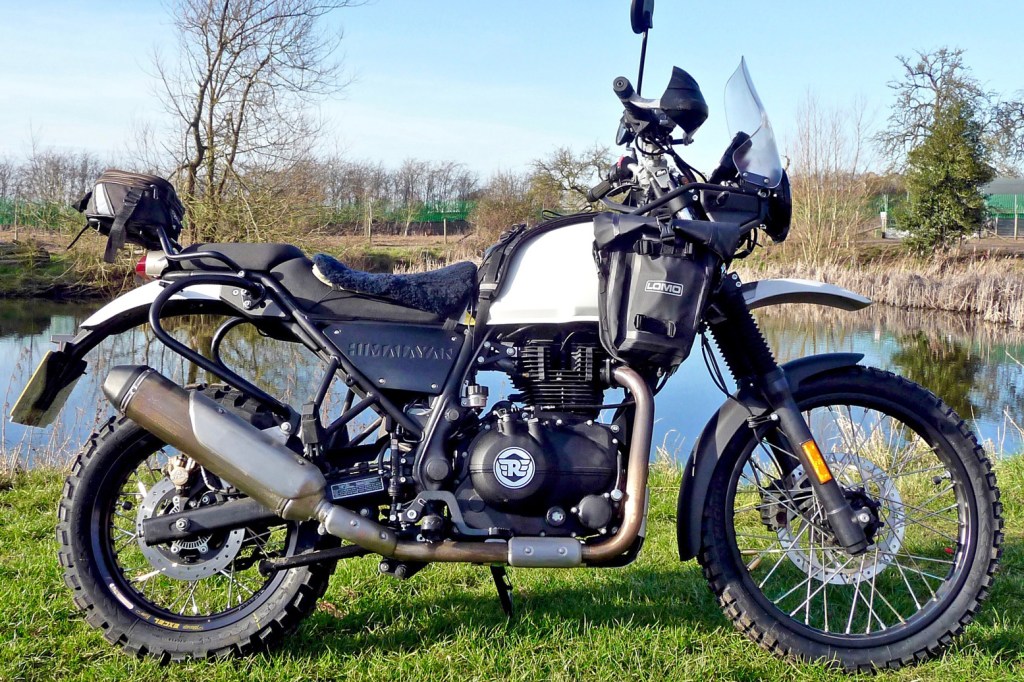

himbo

Adventurising the RE Himalayan

Himalayan Index Page

himalioFor what you pay and compared to vaguely similar bikes, Royal Enfield’s 2018 BS4 Himalayan comes very well equipped: centre stand; small tail rack plus tank sideracks; small screen; 15-litre tank giving a 400-km range; a small bashplate plus suspension that need not be instantly written off.
Most of those items won’t need improving, but when did that ever stop anyone? Below, I throw out some ideas to help turn the Himalayan into a functional overlander. As with all my project bikes dating right back to the XT500 of 1982, I like to experiment with new stuff and new ways of doing things, much like Enfield’s Himalayan itself.
It’s all part of the adventure and if nothing else, it’s good for the book.

Wheels & Tyres
MT60Out of the showroom REH’s come shod with Brazilian Pirelli MT60s (right; mine stamped ‘2012’…). The spoked rims are steel: 21 front, 17 on the back. The Pirellis would have been OK for a regular Moroccan ride, but because I’ll be heading into the sands this time, tread becomes a little more critical. Below, some tyres of interestMotoz Tractionator Adventure; Anlas Capra X and Michelin Anakee Wild.

himtyreOne thing I’ve quickly discovered is that none of the above tyres come in the stock 120/90 17 size. The only similar tyre I know of is Mitas’ E-09 which I tried on the XR400 in Algeria; a great desert tyre. Generally 17s tend to be low profile tyres suited to bigger, more powerful machines, and 18s are for traditional dirt bikes with taller profiles giving more ‘suspension’ or ‘footprint’ at low pressures. The him-swingspaceabove trio come no smaller than 130/80 17. There’s probably only a few mil in it, but if possible I’d rather not go overboard with a ‘bigger-must-be-better’ rear tyre. Too much tyre will make the Him even more sluggish.
Swingarm space with the stock MT60s (left) shows plenty of room to the sides but about an inch at the front so for a replacement, actual dimensions may matter. The MT60 is 122mm wide and currently 93mm high from the edge of the rim. The swingarm gap will increase a little as the tyre wears and the chain stretches. Ratio-wise, 120 x 90% technically = 108mm tyre height, while 130 x 80% = only 104mm, so a 130 ought to have a lower profile or height. So even a 10mm wider 130/80 17 tyre will easily fit the Himalayan. Interestingly, an Anakee Wild 130/80-17 M/C 65R TL weighs nearly 50% more than a Wild in 120/80-18 M/C 62S TT (5kg). An  Anlas CapraX 130/80 B17 weighs 6.1kg. Motoz don’t know yet.
him-17-18Fitting an 18-inch rim would greatly expand tyre choice at the slim 120/90-ish end. But with half an inch more radius in the rim, taller 18s could become a squeeze against the front of the swingarm unless a chain link is added to move the wheel back a bit.
An additional incentive to move to an 18 is a chance to replace the stock steel rim with an alloy rim which will be a bit lighter. Suspension and steering, as well as acceleration/braking all react more readily if the unsprung weight red, below – is kept to a minimum.unsprungweight

I read on the inter net that the effects of unsprung weight includes the rotational mass of the gyroscoping wheel, plus – at non-rallying speeds – the less critical up-and-down mass the suspension has to control (image below). Additional unsprung weight takes more power to turn that mass, more brakes to slow it and better suspension to control it. This mass can be reduced by considering tyre weight, not just the size, tread and price, going tubeless (eliminating heavy-duty inner tubes), as well as lighter rims, chain, rear sprocket materials; forks/swing arms and braking components. I’ve always thought this is a much overlooked area of weight saving on bikes, where changing a pipe is often used as an excuse to save weight. I remember the alloy front wheel on my XT660Z weighed a ton, partly because of the OTT twin discs when one good disc was all that was needed. Cheap stuff can be heavy, even in alloy.
The image below illustrates how much greater the reaction forces are with heavier wheels. Put another way, it’s why your trainers weigh only 320g. ‘Add lightness’ as the old racing adage goes.

him-unsprsus

And if I’m messing about with rims it would be a shame not to go tubeless, for all the usual reasons. See the link, but basically it’s: DIY mastic as on my 660 Tenere, Outex tape (~£70, never tried), BARTubeless (~£320, as on the 500X RR) and Tubliss (~£180 a pair; as on tubliss-sectionmy GS500R), or a suitable rim (rare/expensive).
If I go to an 18 I’m thinking of giving the 2nd generation Tubliss (right) another go as it’s an easy and inexpensive fit, but they only come in 21, 19 and 18 inch, not 17. Along with greater tyre choice and lighter alloy, that’s a third reason to convert the rear to an 18 inch rim.

Is this all going a bit far with a humble Himalayan, or making the most of its potential? Will I or the bike notice the difference of a lighter wheelset, once all the other junk is added? Unfortunately I don’t have enough time to get a solid riding impression of the stock bike before setting off.

him-tankrakLoad Carrying
One of the REH’s distinctive features are the tank racks which some mistake for tank protectors. They’ll do that too but to me they’re clearly a handy place to lash items or bags. The previous owner had a similar set-up using Kriega drypacks and helpfully wrapped the Royal Enfield badge in string to stop it getting worn away.
Kriega is one way of doing it, so is Lomo who’ve sent meLomobags a pair of their PVC roll-top crash bar dry bags to try (£39 pair). At around 6 litres each they look ideally suited to the racks. I plan to mount them semi-permanently and will use Lomo’s same-sized orange ultralight dry bags rigg(£3) to lift everything out easily when lodging. In the US the more boxy, 3L Rigg fender bags (right) look like a neat fit too.
Then, once I zip on my Giant Loop tank bag, most of my daytime needs will be in view and at arm’s reach, meaning what’s behind can be left strapped in place. It may even mean I can do without a daypack on my back, plus the crash bags will keep the wind and rain off my creaking knees.
him-rakFor the back an Enfield pannier rack is has just turned from India for under 80 cbxenderquid. Looks like a hefty set up – it weighs over 5kg. You’ll find them sold on ebay, or at twice the price from UK sellers. I’ve not decided what bags I’ll use on the side. At the simplest I can just lash on a couple of rugged PVC dry bags, as I did with the Rally Raid 500X (right) a couple of years back.
him-tailAnd right at the back the narrow tail rack has taken my long-suffering Touratech tail bag – one of my all-time travel luggage favourites.
Having all these bags spread around the bike is handy for access, compartmentalisation and weight distribution but at, quite literally, the end of a day, it does mean more faffing about to get it all indoors when the parking is less than secure.

Comfort: handlebars; screen; saddle
barkbt06The bike came with Oxford heated grips – luvlay juvlay. My old Barkbuster Storms will also get their nth outing on an AMW project bike, but it looks like they’ll require BTC 06 curved adaptor clamps (right) to get under the brake lines and so on (they didn’t fit).

him-barsTalking of which, with this ABS model (brake line goes under tank to the pump, not straight down to the wheel) I’m not sure there’s enough slack to get much more than an inch of lift on the bars, which means my 50mm Rox Risers may have to sit this one out (they didn’t). Non-ABS Hims ought not have this problem. As it is the stoop for me isn’t too bad and the general position is of course much better than the XSR. I only tend to stand when I must, but that’s partly because I rarely ride a bike where prolonged standing off road is comfortable. One way to dodge the stoop is to lower my height by removing footpeg rubbers. Wearing very thin socks also helps. Fyi: ABS switch hack.

him-screenThe screen is better than nothing and has a tiny bit of fore and aft adjustment. It’ll be all that’s needed off-road; less so for a long cross-country ride. You can get those clip-  or bolt-on deflectors like the adjustable MRA Xcreen (below right) which I had on a recent Tiger (we don’t talk about that bike) and which mra_x-creen_sport_xcsa_spoiler_animationworked well for what it was. Or Hitchcocks Enfield specialists do a taller version, but only by 60cm. Changing a fixed screen is a gamble while others have found chopping it right down greatly reduces buffeting. Much depends on your helmet, height and attitude to discomfort. You’ll never get it right all the time and it’s all part of the biking experience, so unless you know what works for you, by far the best screen is something adjustable like the Xcreen or the Palmer I had on the CB-X.

coolcoverIt doesn’t feel like the seat will sustain my post Xmas mass, sprung or otherwise, for more than an hour or two. Nothing new there.
I’m getting a mesh Cool Cover (left) to test. One good thing with fitted covers like this, as opposed to airbag seat bags, is that you can securely stuff added padding aerosheepadunderneath without having to do a reupholstery job. I’ve got an old Aerostich lambs wool seatpad (right) which used alone may have had it’s day, but under the Cool Cover may add a bit more cushioning.seatech
One good thing on the REH is the two-part seat; it makes any foam-hacking job a bit less terminal. On the right: an excerpt of AMH7 – looks like doing a good DIY job gets complicated. Here’s a nice Seat Concepts job from the US.

Suspension
I’ve often wondered how much more it costs in time and money to make stock suspension which works out of the crate. There must be no shortage of data and algorithms, so maybe it’s the time in fine tuning an individual model where the costs pile up. We’re so used to regular bikes coming with great engines which can sing and dance in four time zones, but have adequate suspension which presumably is expected to work for most riders at moderate speeds. Crank up the speed or reduce the surface quality and composure soon slips away as suspension travel gets eaten up, as I found on my CB500X and XSR700. But on my BMW XCountry I discovered what decent suspension actually meant: not that obvious on road, but a whole new world of control as dirt turns gnarly. Problem is that’ll be no change from €1000 and trip to Holland, please.him-shock
yss himalayanMany reviews say the Himalayan’s suspension is pretty good for what it is, which is all the more surprising when you look at the seemingly spring-bound stock shock on the right. I read it’s not trying to be progressive but a dual rate spring and in fact there is a 2mm gap between the closely set coils.
Talking with Nathan Millward who’s been running his Himalayan for a few months, he admits that loaded up his stocker’s preload is now on the max. Being a little better fed than the Postman, it won’t take long for me to reach that state.
hypershockCurrently the only outfits offering shocks are Hyperpro (right; €500) and YSS (above left; made in Thailand). Unusually, both come with rebound damping but the YSS also has adjustable height and was just £270 from Wemoto on special. For that price it’ll be worth a shot and the option of dialling in a bit of extra height will be handy. As it is, the bike tends to sit a little too upright on the sidestand and adding a sandfoot won’t help. And also if I do go for an 18-inch rim where the tyre range is taller, a bit more space will be handy
him-fkprlFor the fork YSS also make a kit (above left) costing not much less than the shock. It includes valve emulators (available separately for around £80), something I’ve read of but never tried. For the moment there’s nothing to be lost by starting with some Chinese ebay fork pre-loaders (£10; left; as tried on the XSR). After that I may move up to a firmer K-Tech spring if they’ll make me one. Firmer springs may be enough to bring the front end back up if an 18-inch rear rim is fitted.

Ancillaries
I’ll hard wire the trusty Montana in and fit a RAM mount on the bars. I’ll also add a PTO for the Powerlet heated vest and type pump. The claimed 220w alternator output is nothing special, but some wattage has been freed up with dinky LED indicators and there’s a spare LED headlamp which came with the bike. Otherwise I plan to add a switch so the lights aren’t on 24/7. There are times when you don’t want to be seen too easily.
tempLast but not least, the Trail Tech engine temperature gauge from last year’s XR will get wired on to some very hot part of the Enfield’s engine.
With an oil and air-cooled motor, even a low output one like the REH, it’s all the more important know how hot things are getting down in the engine room.

Himalayan Index Page





WR250R – ready for the desert

wrr-label

WR250R 4000-km review
WR Introduction
WR250R Stage 1
WRing about in Wales
WR250R ready for the desert
Morocco trip report, 1–9
Fuel log

While in Morocco last year and not riding around on my WR250R, I left it with a list and a bunch of stuff with Karim, a desert bikey mate with a lavishly equipped garage and some spare time on his hands. Over the weeks he tinkered away, finishing the job I’d started in the summer, converting the WR into a lightweight desert bike.

tecktemptektempThe list included a TrailTech engine temperature gauge (left). IMO it’s vital to be able to know an engine’s temperature – air or water-cooled; I don’t want to hope some warning light might chip in just as steam starts wafting up from under the tank (as happened to a 450 KTM in the desert once, below left: engine fried, end of his ride). The gauge’s pick up sensor can be mounted anywhere very hot including splicing into the radiator hose to read water temps – all you’re really looking for is a ktmfryrepresentative value from which to evaluate a normal reading. If it starts straying into unusually high figures you can choose to back off, or even stop and turn into the wind at tickover. On the ride back to London in a backwind gale the temperature varied from 85°C up to 115°C flat out or at the lights, but usually around 100. Another handy thing is it reads even when the engine’s off – a handy air temp reading when camping.
At the same time one fan blade got tippexed white to make it easier to see at a glance if it was spinning when it should be.

wr3-12vwrr-ramA RAM mount and wire for my Montana got hardwired in (left) to guarantee a reliable, clip-on connection, and some 12-volt and USB plugs got added to the cross-bar (right). Got no actual use for them but handy to have. There’s also a DIN plug tucked in by the seat base to power a heated jacket and the tyre pump.

wrr-krigstrapwrr-krigovlsI’m going to be trying out some new Kriega Overlander-S panniers – OS32 – which mount and strap on quite cleverly to an HDPE platform that’s clamped to the rack. I’ll do a fuller review of the system once on a road a couple of weeks, but as you can see, the volume means to large tailpack is needed, even with basic camping gear. I find that makes swinging a leg over the high saddle easier and a less cluttered look.

wrr-borkMy trusty old Barkbuster Storms are getting what must be their fifth fitting dorison the WR. Whatever came with the bike was all plastic and not really up to the job. And before I’d even loaded the bike to head back to London, the Barks saved the day when a gust from Storm Doris (right) blew the WR over.

wrr-lampThe headlight bulb has been uprated to a Cyclops H4 LED (find them on ebay) which emits a bluey light, and they promise will cut through the night sky like a meteor shower as well as consumed less juice?
And down by the front sprocket I added a wrr-sandSandman case saver kit from Basher in Missouri. I’m starting on a 14T (on 46), and swapping to a 13T (about 10% lower gearing if the speedo error is any judge), should the need arise.

wrmc23frwrr-rokriderTyres, you ask: I try never to use the same type twice and this time round I’m on Mitas (formerly Sava) MC23 Rockriders. I was hoping to go tubeless until I saw the back DID rim doesn’t have the lip (in which case this would work, were it in my size). I’m confident the Mitaii will easily last the trip of about 5000km, wrklamphelped with a splash of Slime and a few Hail Marys. I’ve also added a dinky rimlokMotion Pro rim lock on the back which weighs next to nothing, but will hopefully bite when the need arises. I can’t see me running pressures low enough where the scant torque of a WR250 will be able to turn the tyre on the rim. The whole point of running knobblies like the MC23s is – away from deep sand plains and dunes – you will get great grip on the dirt without the need to run them at 1 bar and risk flats.

flyandridewrr-fandrAnd that is that. The rest of the adaptions are here.) The bike is on its way to Malaga in a Fly and Ride artic which, at £595 return, actually works out quicker and cheaper than a ferry-and-Spain crossing.
fj12I readily admit the WR is no FJ12 on the open road and makes you feel a bit vulnerable dicing with fast European highway traffic – but then again it won’t be an FJ12 on rough backroads or the pistes either. So far I have a good feeling about the untried WR-R: I love the lightness and the better than average poke for a 250, along with great mpg and desert-ready suspension and tyres. But of course I’ll miss the comfort of last year’s La Mancha-munching CB500X. What we have here is a specialised, lightweight desert touring bike.
Stick around to see how the WR performs in Morocco and, if it behaves, in Western Sahara too.
