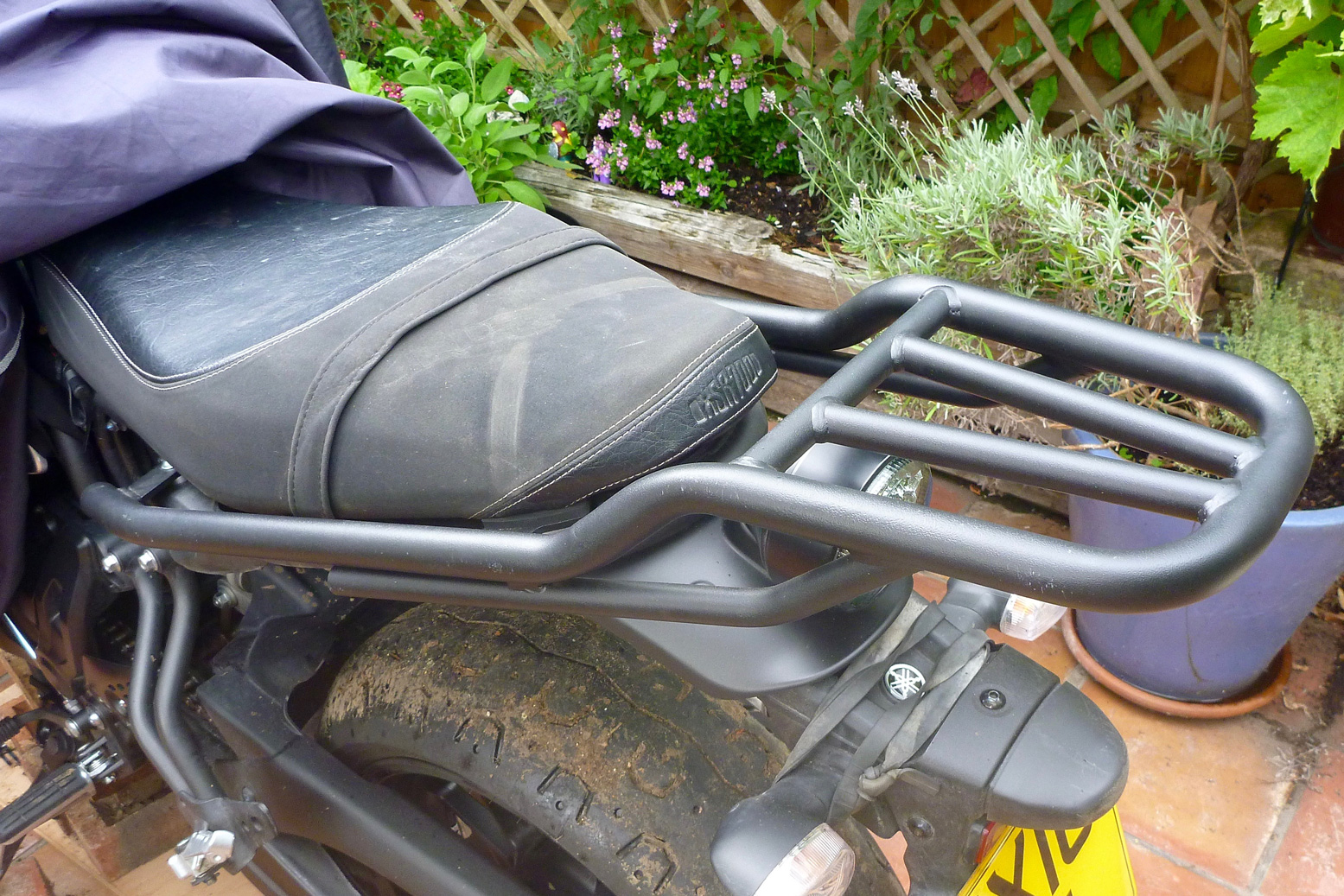

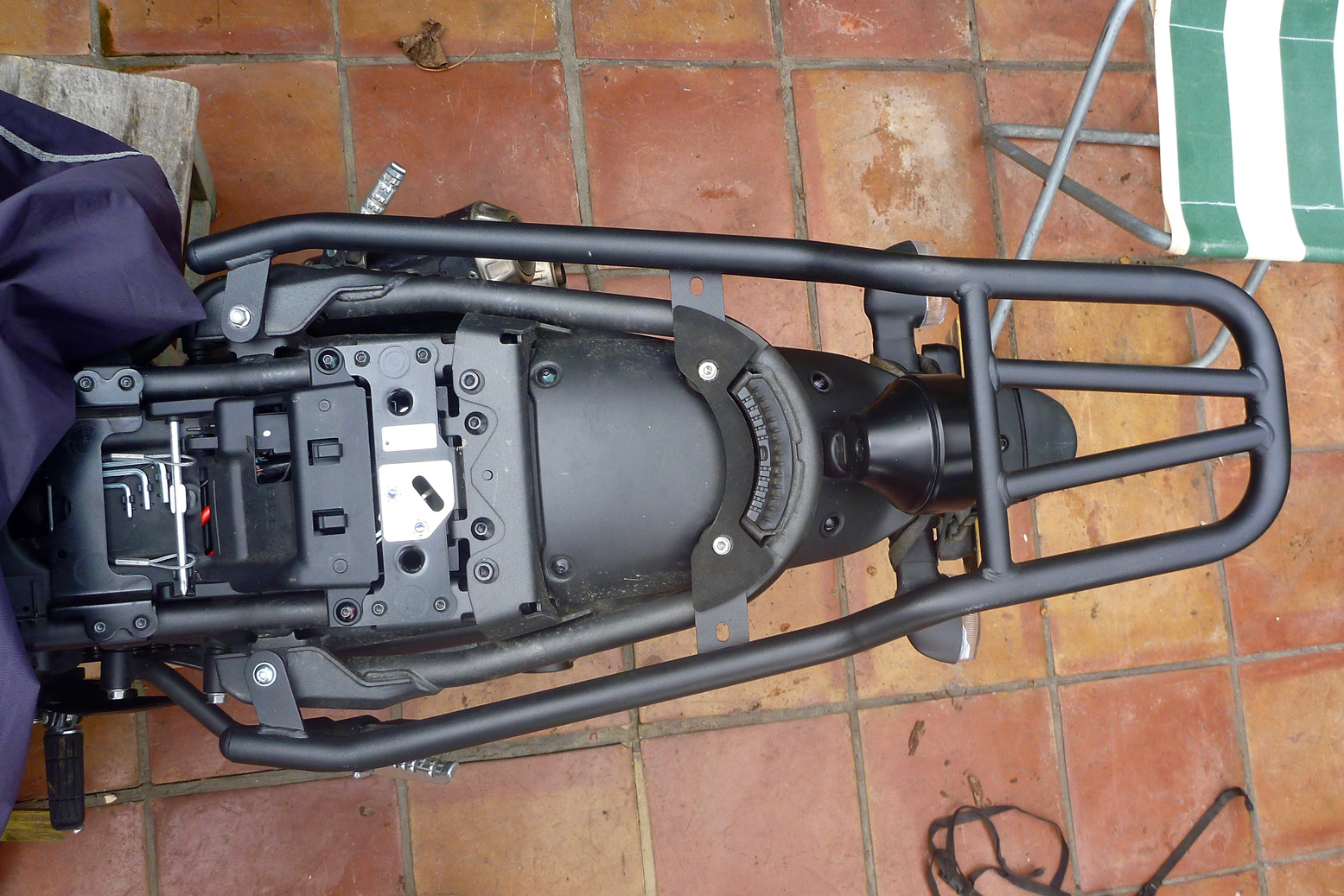

Two quick jobs while I’m waiting on wheel parts. Got a used Givi tail rack off ebay (£50 posted). At 3.2kg, it’s a heavy steel thing and a bit over-built, but mounts easily and solidly and, best of all, offers solid grab handles on the side. I find these useful for moving a stationary bike around, lashing it down, or lashing things to it.The actual rack is tiny, but would easily be widened if need be. A simple bar from this rack to the pillion footrests ought to hopefully be enough to keep some throwovers out of the wheels
Fitting  took 10-15 mins.

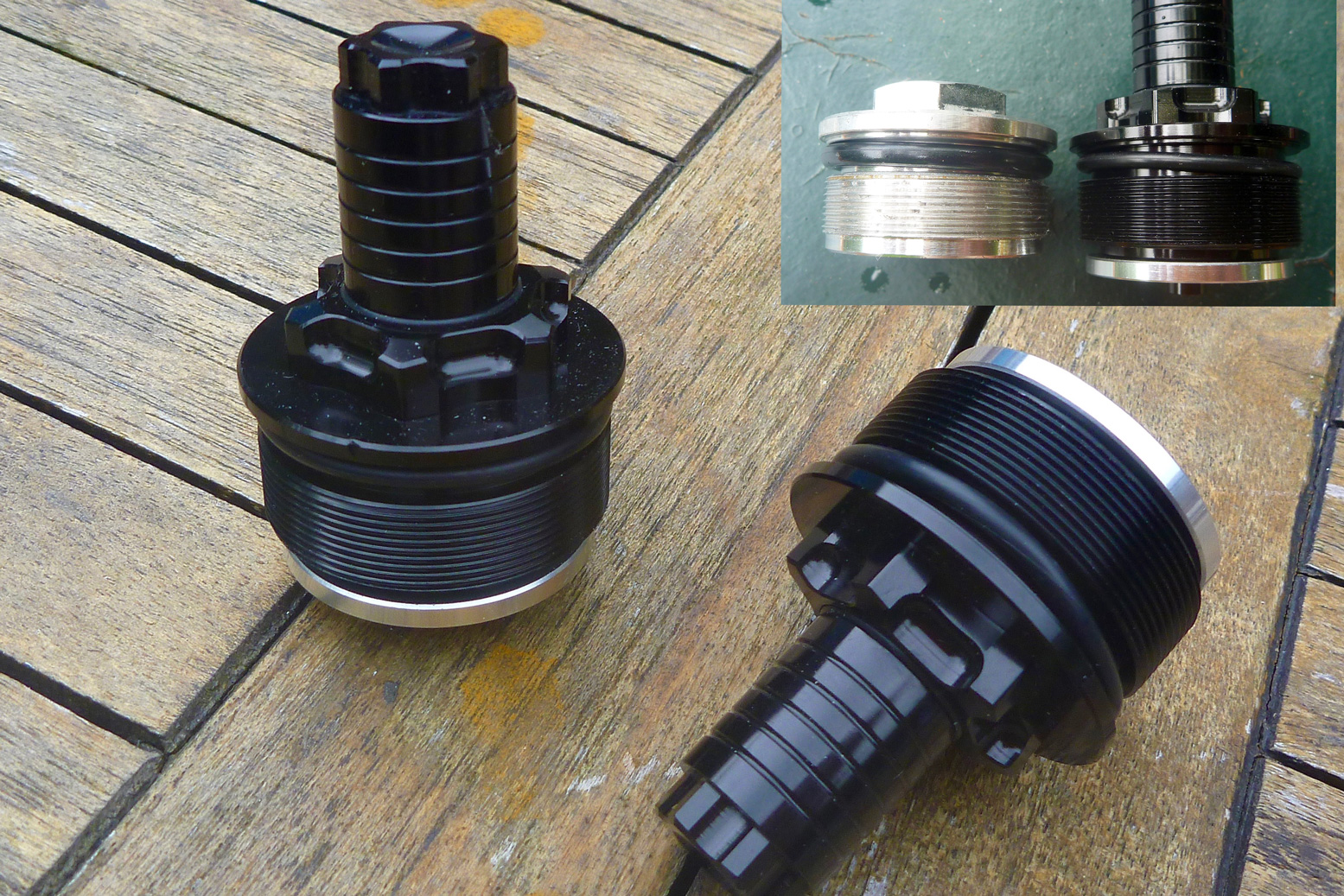

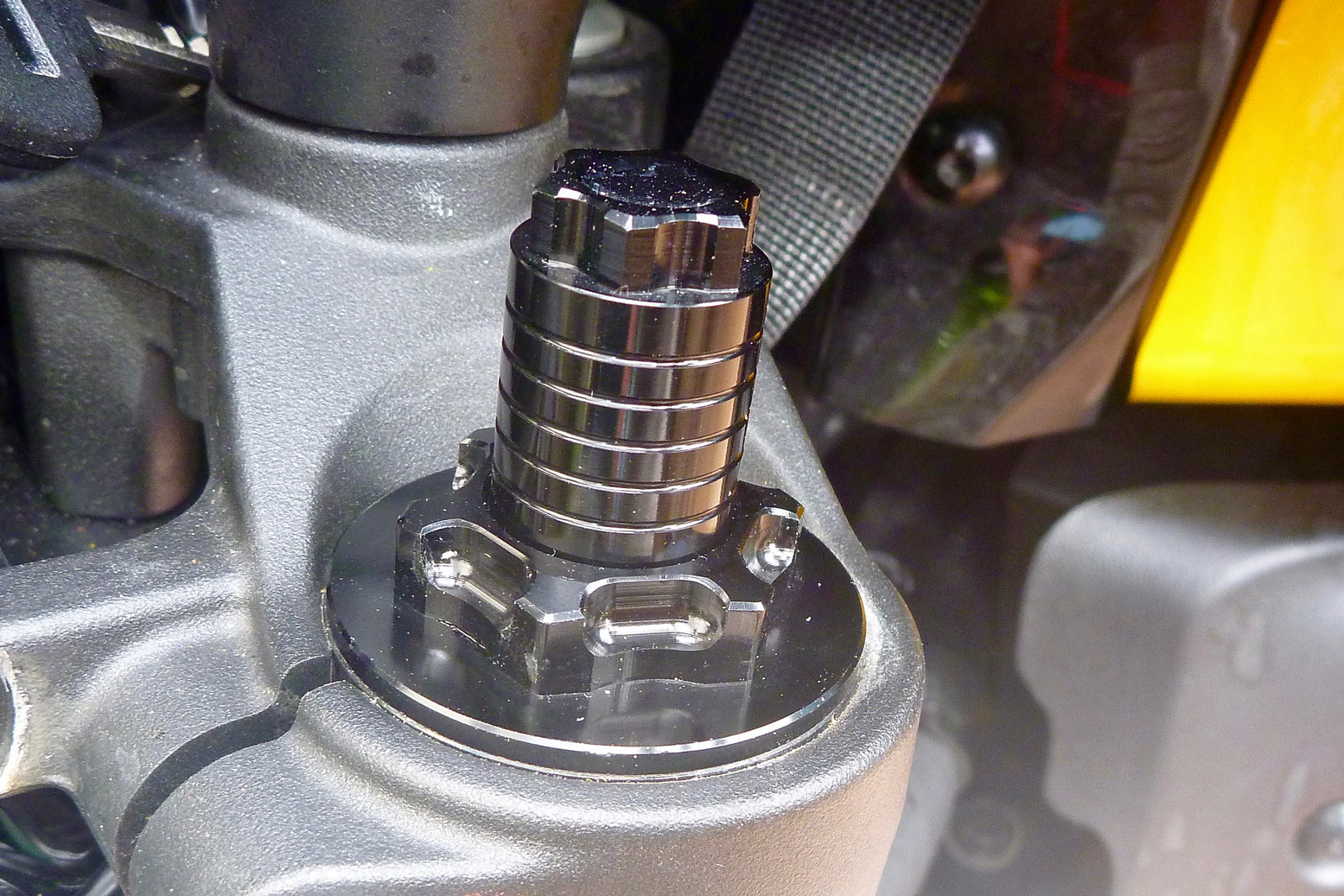

My fork pre-loaders turned up from Hong Kong. Basically, a pair of fork caps with an external screw pushing a plate down on the spring. In the old days we used to stick coin stacks under the fork caps to do the same thing, but with these you can do that plus easily tune in about an inch of preload. They look as well made as the OE caps, with o-rings and a good finish, but weigh at least twice as much. Better skip lunch then.

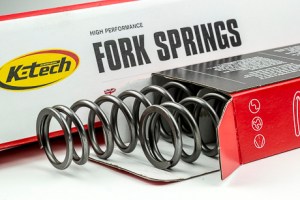

I’m not expecting any improvement in the fork ktechSpringsaction, just the option to firm up the front on the dirt. Front or rear, preloading does not make the spring stiffer (even if it feels like it), it raises the ride height. Next step would be spending ~£100 on an aftermarket springs (right) and meddling with fork oil level and viscosity. I don’t think there’s any getting away from that with my height and intended use.
Fitting 5 mins per side. Cost £25.
