Africa Twin: Sealing the Rear Wheel for Tubeless

AFRICA TWIN  INDEX PAGE
I’ve been rewriting loads about conversing spoked rims to tubeless.
There are several updated pages from here on what, why and how.

If ever a bike wanted tubeless wheels it’s the AT (and T7 for that matter). These bikes run 21-inch fronts and were initially pitched at a low price to get them moving. Choppers aside, cast wheels are unknown in 21-inch, while OE spoked tubeless wheels (as on many European 21-inch advs) are expensive. The new 2020 1100 AT Adventure Sport finally has a tubeless 18/21 set up.

MT or WM?

at-wheels.jpgI’ve investigated various proprietary methods and, after 12 years and a lot more theoretical and second-hand knowledge, decided to give DIY sealing another go – but carefully this time and only on the back wheel (above, top) where it’s fairly easy to do. Like nearly all 21s, the AT’s front rim lacks the ‘MT’ safety lip or ridge which is important if planning to run tubeless tyres. Without it, a TL tyre seals less well on a regular WM rim (above, bottom) and may leak. And in the event of a flat, it will slip into the rim just like a tubed tyre with the usual undesirable results.
The only way around that it to get the rare, lipped, 2.15 x 21-inch Giant rim from CWC for £111. Add anodising, spokes, wheel building, their Airtight™ vulcanised sealing band (similar to DIY mastic) plus post and that’ll be nearly 400 quid. I could seal it myself and save £120, but 21-inch wells are narrow and curved and so are less suited to taping. So while CWC make my wheel, I may as well cough up for the Airtight and be done with it.
The high cost of a new wheel build is why DIY is so attractive, providing your rim is MT with the requisite safety lips. Most rear wheels, tubed or tubeless, have been like this for decades (they will be stamped ‘MT’ on the side, as opposed to ‘WM’). And the AT’s rear well is also nice and flat and 55mm wide which makes it easier to seal well.

Things you will need

  1. The wheel resting on a spindle
  2. Solvent (Brake cleaner, Toluene, MEK, Acetone, etc)
  3. Microfibre rag (lint-free) and Q-tips
  4. Runny adhesive – from Superglue to Seal-All
  5. Thicker sealant – like Goop or Bostik 1782
  6. Sealant tape such as 3M 4411N (not the 2mm thick 4412N). From £18 on ebay
  7. Or some etching primer and mastic sealant like Puraflex about £6 for 300mm
  8. A tubeless valve

Rim sealing procedure

Clean rim thoroughly with solvent using a rag, toothbrush and Q-tips
Apply a runny glue around the nipple and into the threaded centre. I used Bostik; thinner would have been better. Expect microbubbles. Leave to dry for a day.
A day later overseal with thicker sealant. I used clear Goop. Let it dry for a day.
Wrap the undried glue in the non-sticky side of masking tape to stop the lower Goop blobs sagging out under gravity. Or spend days turning the wheel and doing four nipples at a time.
Tape up the rim with 50mm 3M 4411N.
Because I used thick glue and maybe too much, the lumps stuck up quite a lot so made it hard for the non-elastic tape to fully contact the rim floor. I pressed down between the spoke nipples as best I could and did the odd prick here and there. Then I removed the backing film while allowing for some overlap.
As good as I could get the tape. But I’m confident the glue alone has sealed the rim.
I decided to cover the 3M with some regular plastic tape to protect it during tyre mounting.

Or…

tl-ianwheel
… spray on some etching primer, let it dry then apply a coat or two of Puraflex mastic. Don’t go too thick or you’ll lose the well’s depth and ‘slack’ needed for easy tyre fitting.

If you’ll be in a wet environment, consider also sealing the spoke nipples from the outside.

The mastic sealant method is probably better. The tape adhesive might lift if it gets very hot; a black tyre and rim sat in the hot sun. But then, pressure building up in a hot tyre will tend to push the tape down.

Mounting and inflating the tyre

Mounting is easy as there’s no tube to worry about. Soapy beads help reduce the effort needed and tubeless tyres are actually quite flexible – or that’s how the Michelin felt. I know from cars and the Tenere years ago that home mounting tubeless tyres can be tricky. It took me most of the day to get the TKCs on to the Tenere, and that was with a pokey 2.5cfm 4×4 compressor. Because there is no inner tube pushing the tyre on to the rim, you need both edges of the loose tyre to at least make a partial seal with the rim and allow pressure to build up. When that happens, the seal improves, leakage stops and you’re on your way. Using a small car compressor and with the valve core removed to allow faster filling, nothing happened for a bit and then pressure slowly built up as input outpaced leakage. At around 35-40psi there were a couple of loud bangs as the last segment of bead slipped over the safety rim and into place.

I am fairly confident my gluing alone has made a good seal. The tape is probably redundant. Overnight there was no drastic pressure drop. If there is in the next week and I can’t fix it, I’ll swap back to the tubed wheel and will anyway take a spare tube. This time I’m not using Slime sealant, though I’m told it doesn’t affect the 3M tape’s adhesion.
I’ll be monitoring it with TPMS but a few days in it was about 8 psi down and the same again when I picked the bike up in Spain in March. So it seems to depressurised down the mid 20s psi. I seem to recall this was normal in the early days and so gave the back a shot of Slime in Spain. No more leakage.

Golden Tyre FTS tubeless tyres

Tubeless Conversion Index Page

2018: Golden Tyre have withdrawn this product

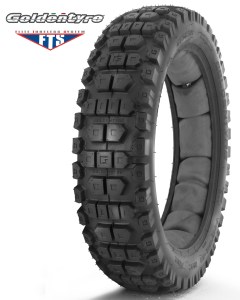

gt-fts

I’ve been experimenting and following various tubeless tyre solutions over the years because tubeless is the way to go on the long road. Why? because punctures – your most likely breakdown – can be easily and reliably fixed in a jiffy (read this for the long version).

In 2017 Italian tyre maker Golden Tyre came up with a new idea to the old problem of running tubeless on a spoked rim. Their Flite Tubeless System (FTS) had a thick inner tube permanently bonded to the carcass of a hard-wearing GT723 Rally Adv tyre creating a new thing: a tubeless tubetyre.

This means that unlike a foam mousse, you can meddle with the pressures, but also, unlike a mousse when the tyre is punctured it will go flat. But! – like a tubeless tyre, you just do the spike-ram-plug thing and jog on if you’re not running Slime or a similar sealant.

tubeless-graphic
outex

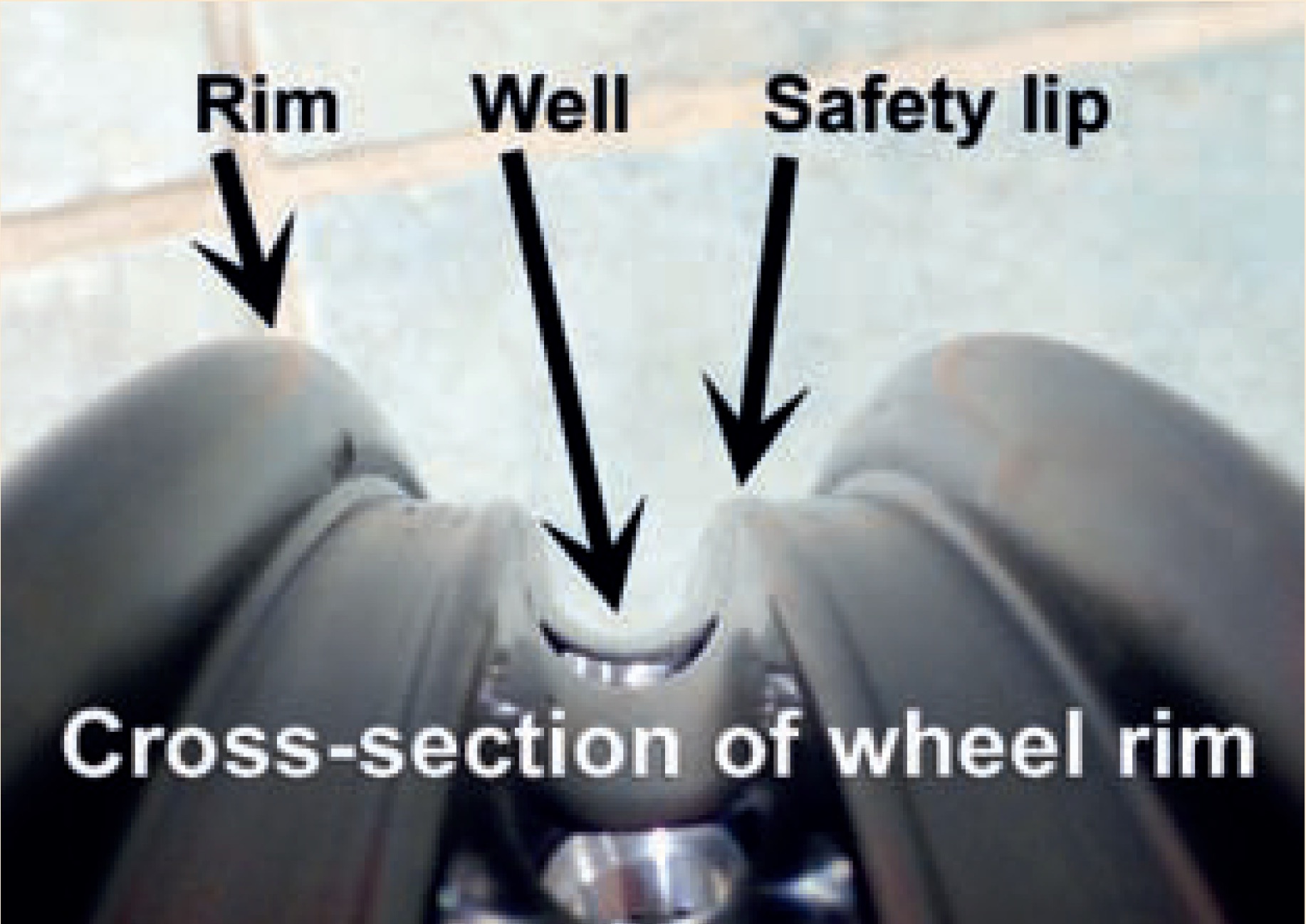

Because the tube is bonded to the tyre there’s less heat from tube-to-tyre friction at low, flexy pressures and mounting should be a little easier – certainly easier than mousses, they say. The FTS is lighter than a mousse too. And of course, they’ll fit and work on any rim, whether it has the all-important tubeless tyre lip (left) or not.
That was the problem I had on my WR recently: all set to fit an Outex tubeless system (right, not my wheel) to the back wheel until I noticed it had no tyre-bead retaining lips. Without them slow leakage is likely.

wrrockriders

The drawback (apart from them being withdrawn) was they only came in 140/80 18″ and 21″ and cost from £150 each from Adventure Spec, but if you factor in the possible cost of needing to convert to tubeless rims (as I could have done with the WR), maybe it works out. A regular GT723 is only some £30 cheaper – still pretty expensive when my similar Mitas Rockriders (right) cost about half that. And for travelling, when your FTS GT723 wears out, where will you get a new one? (Nowhere). That’s always been the problem on the road – and is why long-wearing do-it-all tyres like the Heidenau K60 or Mitas E07 are worthwhile.

lyndtyre

Adv Spec rider Lyndon Poskitt (left) got 10,000km from his tubed GT723 on his 690, including a rally in Mongolia. So you’d imagine a less racey traveller might get half as much again from an FTS

Seemingly no longer available despite a good review on Adv Spec, the bodger in me wonders if I could bond a regular inner tube to the inside of a tyre and achieve the same effect? Thing is, I bet GT did more than just glue a tube into the tyre – I suspect it was vulcanised. Otherwise, it would have to be a brilliant DIY glue job to avoid any air pockets as any heat might see it all delaminate.
